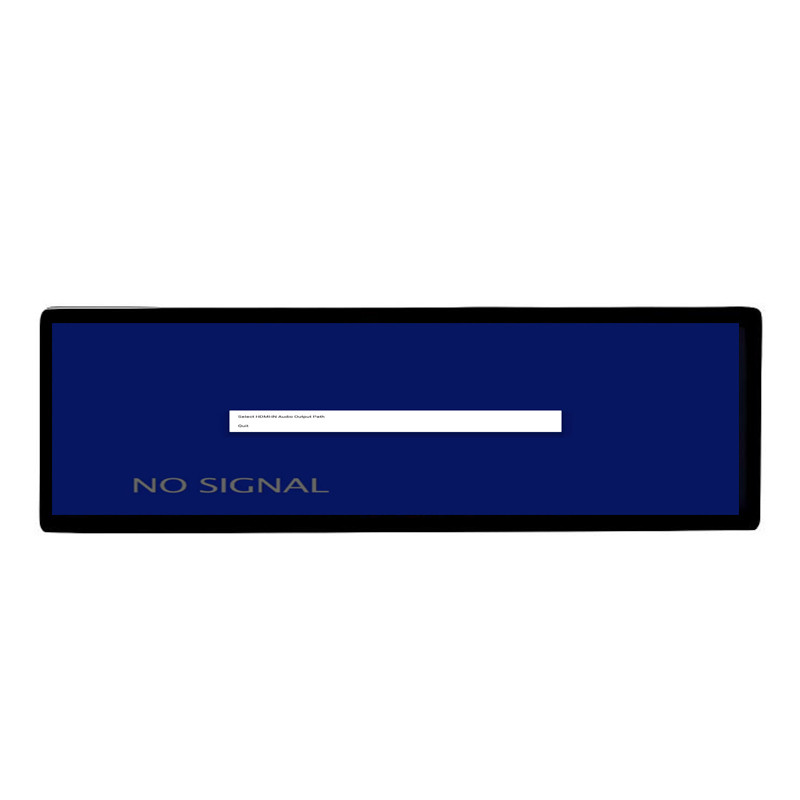

Industrial 24.3 Inch Bar Type Monitor Display with Aluminum Profile
High-resolution 24.3 inch aluminum profile stretched display with 1920*508 active matrix and 250 cd/㎡ brightness. Designed for smart retail, rolling stock transit, and industrial server racks. Backed by 9+ years of specialized display manufacturing.
Specifications
- Screen Size
- 24.3 Inch
- Resolution
- 1920*508
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
24.3 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 24.3 inch | |
Resolution | 1920*508 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Maximizing Visual Sightlines: Re-Engineering Display Ratios for Linear Margins
Modern public infrastructure demands streamlined visual integration. The 24.3-inch panoramic display is engineered to overcome vertical mounting constraints, delivering 1920*508 resolution across an elongated 24.3-inch viewing area. It offers system integrators a reliable way to deploy dynamic digital content in tight architectural slots without visual compromise.
In smart retail environments, dynamic price changes and seasonal campaigns can be scheduled automatically. This operational flexibility eliminates manual re-labeling labor and ensures pricing accuracy across multi-store chains.
In public service environments such as healthcare intake desks and civic service counters, compact horizontal displays keep waiting citizens informed while preserving clear verbal and visual communication with desk staff.
Commercial Grade Panel Engineering: 24/7 Duty Cycle and Low Luminous Decay
Delivering high visual precision, the 24.3-inch stretched screen features a native resolution of 1920*508 and 250 cd/㎡ luminance. The 1000:1 contrast ratio ensures clear text and dynamic visuals, while IPS ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles and a over 60,000 hours of continuous 24/7 commercial duty backlight lifespan support dependable 24/7 commercial operation.
Carefully tuned gamma curves ensure smooth shadow transitions and clean highlight separation, allowing subtle photographic details to shine in commercial promotional campaigns.
Wide-color-gamut phosphor LEDs provide vibrant red, green, and blue saturation, ensuring that food, apparel, and corporate branding assets render with striking visual fidelity and commercial appeal.
Enclosure Craftsmanship: Aerospace Aluminum and Galvanized Sheet Steel Options
The 24.3-inch extruded aluminum profile housing features an ultra-slim 3.5mm bezel design optimized for retail gondola shelving and luxury showcases. Its aerospace-grade aluminum structure delivers exceptional strength-to-weight performance, enabling rapid clip-on installation without straining shelf fixtures.
To achieve maximum operational lifespan, the monitor utilizes a convection-optimized fanless thermal layout. Heat generated by the LED backlight and power conversion circuitry is dissipated evenly across the external metal body, preventing internal localized hotspots. This solid-state passive design completely prevents airborne grease, moisture, and dust particles from being sucked into the display casing, ensuring uninterrupted reliability in busy commercial settings. Versatile installation is facilitated through standardized rear VESA hole patterns as well as lateral slide-nut mounting channels.
The rear enclosure features dual-plane mounting points that support both direct wall-bracket hanging and articulated arm anchoring. Recessed cable entry ports allow wiring harnesses to exit flush against mounting surfaces, preventing pinched wires and maintaining a clean architectural appearance.
Electrical Reliability: Transient Surge Defense and Clean Signal Routing
Connecting the display into enterprise IT and AV networks is completely frictionless thanks to onboard HDMI, VGA video ports. The display interfaces smoothly with commercial media players, industrial embedded controllers, and split-screen video processors, supporting native resolution mapping without image distortion. An integrated Audio Socket (3.5mm) simplifies connection to external speakers, allowing venues to combine panoramic promotional visuals with directional sound reinforcement. Designed for global commercial deployment, the power converter accepts universal universal 100-240V commercial electrical mains electrical mains. Operating power is capped at an efficient ≤ 45w, delivering significant energy savings. The display delivers robust environmental resilience, operating reliably across ambient temperatures of below10℃ ~ +50℃ and humidity ranges up to ≤ 85%RH.
Conformal protective varnishing applied across printed circuit boards protects copper traces and solder joints against airborne moisture condensation, oil vapors, and conductive dust particles.
Conformal protective varnishing applied across the printed circuit boards forms a durable barrier against ambient humidity condensation, airborne grease vapors, and fine industrial dust particulates.
Open Architecture HDMI Connectivity: Freedom to Choose Your OS
Safeguard your digital signage rollout from proprietary obsolescence with an open-architecture commercial display. Supporting direct HDMI video feeds from external Windows boxes, Android media sticks, and Linux industrial controllers, this monitor provides instant compatibility with your target content management software, interactive point-of-sale applications, and network telemetry utilities.
Commercial Viability: Case Studies in High-Throughput Public Infrastructure
Across commercial and industrial environments, the 24.3-inch stretched display provides versatile visual communication. In retail stores, it drives sales through dynamic point-of-purchase messaging. In transit fleets, it displays real-time route progress. In industrial control rooms, it delivers live equipment telemetry, and in corporate buildings, it functions as a modern architectural directory.
Airport concourses and baggage reclaim zones use this panoramic screen above luggage carousels and customs inspection lanes. Clear, multi-lingual passenger guidance and arrival notifications reduce traveler congestion during international peak arrival banks.
Automated parcel locker networks and interactive retail kiosks benefit from the intuitive guidance provided by horizontal header screens. Step-by-step transaction prompts guide users smoothly through drop-off and pickup procedures.
Agile OEM/ODM Solutions: Custom Paint Finishes, Logo Printing, and Optical Bonding
With over nine years of specialized display manufacturing experience, ZXT supports international system integrators with factory-direct pricing and rapid fulfillment. We offer in-stock tooling, 3-day sample dispatch, and complete engineering documentation including 3D CAD models.
Our engineering staff possesses deep expertise in international compliance standards, assisting partners in meeting CE, FCC, RoHS, and specialized railway or retail electrical safety certifications.
Procurement & Technical Verification FAQ
**Q1: Can this display be integrated into third-party kiosk cabinetry?**
Yes. The compact enclosure profile, standardized VESA mounting holes, and optional open-frame mounting ears make it exceptionally straightforward to integrate into self-service kiosks, vending machines, and ATMs.
**Q2: How does ZXT support overseas localized assembly?**
Through our established SKD/CKD programs, we provide tested sub-assemblies, detailed assembly process documentation, and technical support to assist overseas partners in establishing localized production.
**Q3: How do we initiate an engineering consultation for custom specifications?**
Simply contact our technical sales department with your target installation parameters, dimensional constraints, and order volumes, and our engineering team will provide a comprehensive proposal within two hours.
Project Consultation and Custom Quotation Inquiries
To evaluate a test sample of the 24.3-inch ultra-wide stretched bar LCD monitor, request detailed 2D/3D CAD mounting blueprints, or discuss high-volume OEM/ODM pricing tiers for upcoming commercial deployments, please contact our international technical sales department. Provide your target installation environment, anticipated order volume, and specific interface requirements, and our engineering team will provide a tailored hardware proposal and commercial quotation within two business hours.
