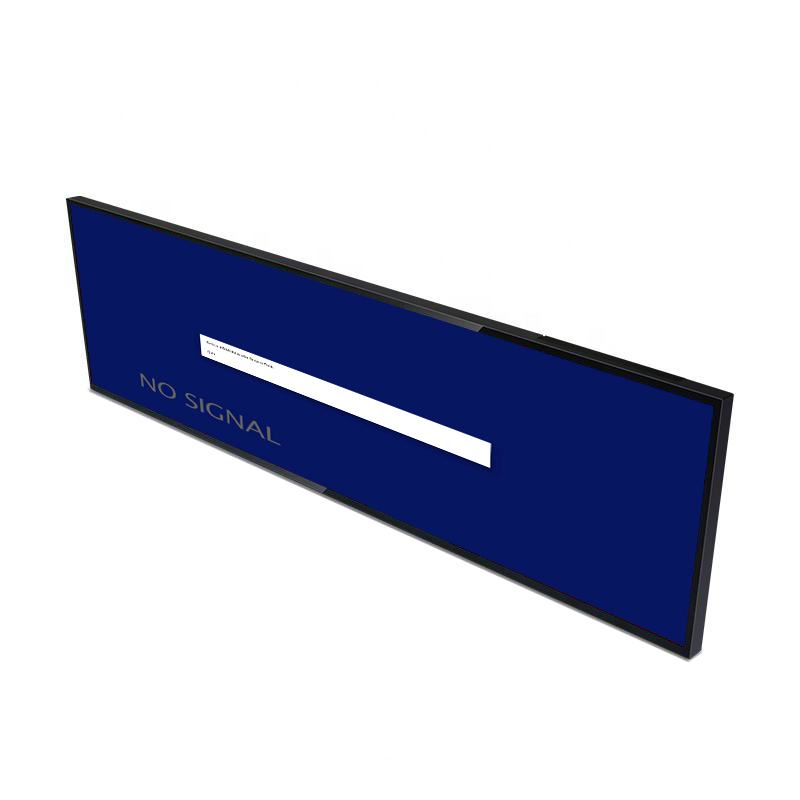

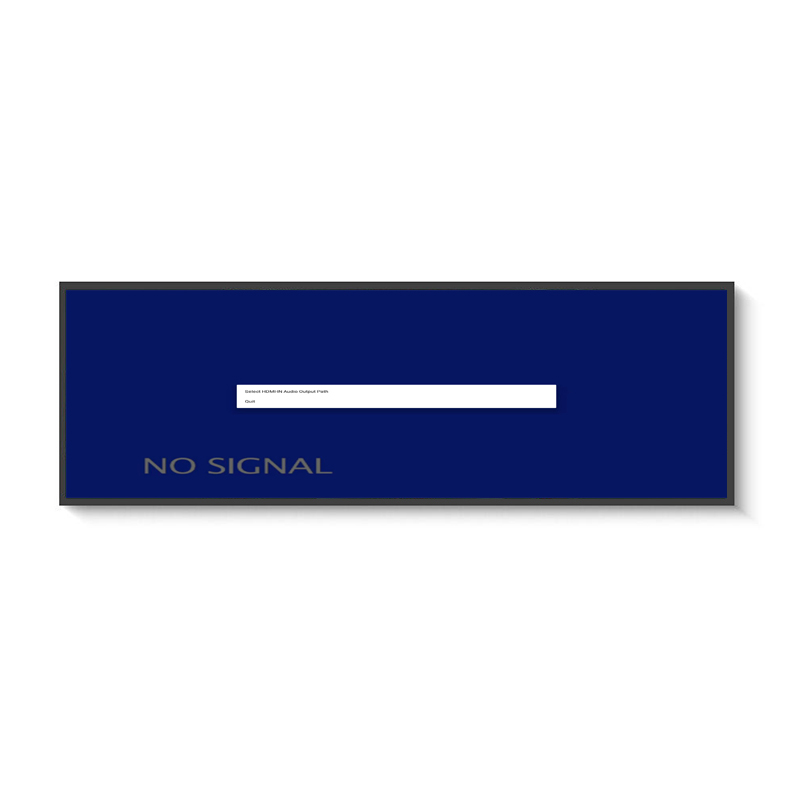

24.2 Inch Long Strip LCD Screen for Transit & Retail Header Advertising
Source-factory 24.2 inch industrial sheet metal bar monitor delivering native 1920*450 resolution and 250 cd/㎡ commercial brightness. Complete with HDMI/VGA inputs and fanless thermal architecture. Fast sampling and volume OEM/ODM fulfillment.
Specifications
- Screen Size
- 24.2 Inch
- Resolution
- 1920*450
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
24.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 24.2 inch | |
Resolution | 1920*450 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Overcoming Installation Bottlenecks Along Linear Commercial Surface Headers
When installation height is restricted to narrow horizontal strips, standard monitors waste space and disrupt interior design. The 24.2-inch stretched bar LCD monitor provides a compact, purpose-built solution, presenting 1920*450 resolution across an active 24.2-inch diagonal. It allows retailers, transit authorities, and industrial plants to broadcast high-definition media without sacrificing clearance.
Passenger transport operators require displays that deliver clear information without obstructing carriage sightlines. These low-profile monitors fit neatly above doorways, ensuring passengers stay informed throughout their journeys.
Store fixture builders benefit from standardized mounting dimensions that speed up initial assembly. The display drops cleanly into pre-formed cabinet openings, reducing workshop labor and speeding up store opening schedules.
Image Reproduction: Wide Aspect Pixel Mapping and Accurate Color Rendering
The optical system of the 24.2-inch panoramic display features 1920*450 resolution, 250 cd/㎡ brightness, and a 1000:1 contrast ratio. True IPS technology guarantees true IPS 178-degree wide visual cone viewing angles without color distortion, while the industrial LED backlight ensures an industrial service life exceeding 60,000 hours of continuous commercial operation.
The liquid crystal panel is engineered for rapid pixel response times, eliminating ghosting and motion blur during fast-scrolling advertising text and high-frame-rate video playback.
The protective front glass surface combines high optical transparency with oil-resistant surface properties, repelling accidental fingerprint smudges and preserving pristine screen clarity in public environments.
Mechanical Integrity: Extrusion Tolerances and Fanless Thermal Management
Built for demanding industrial and transportation applications, the 24.2-inch sheet metal housing is formed from heavy-gauge cold-rolled electro-galvanized steel. The ruggedized enclosure provides superior mechanical shock absorption, structural stiffness, and excellent electromagnetic shielding (EMC), safeguarding internal timing and driving electronics from harsh factory floor vibration, motor noise, and vehicle chassis dynamics.
Thermal management relies on a purely passive, fanless conduction architecture. High-efficiency internal thermal heat-spreaders route heat away from the liquid crystal cell and driving chipsets directly into the external metallic chassis. By eliminating motorized fans, the monitor avoids internal dust accumulation, eliminates mechanical motor failure points, and operates in absolute acoustic silence—critical for quiet luxury retail and public service desks. Mounting versatility is integral to the enclosure design, featuring standard VESA mounting patterns alongside lateral slide-track channels.

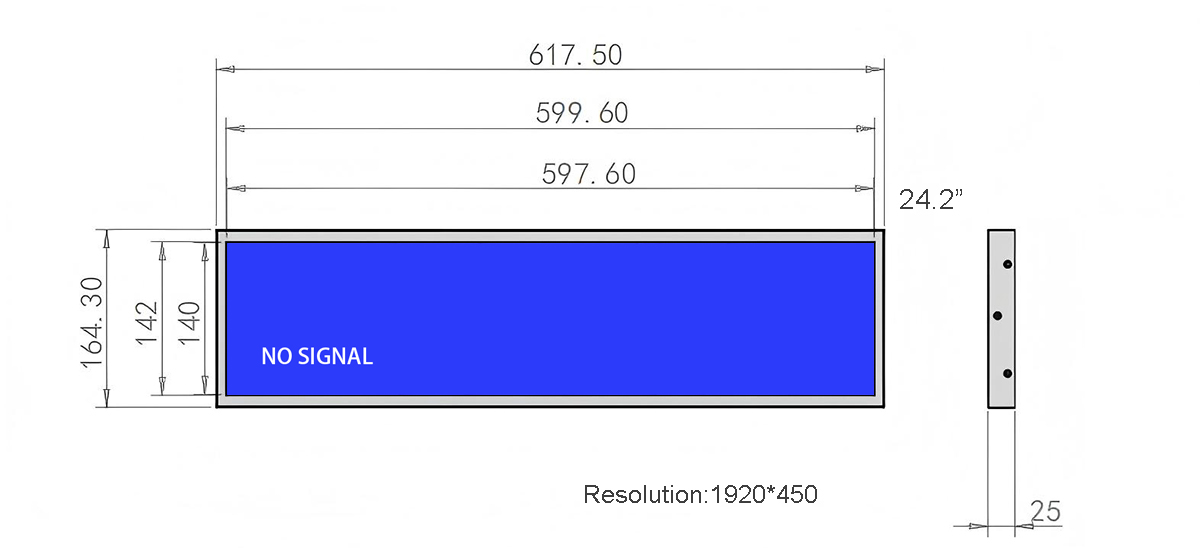

Mechanical installation flexibility is ensured through standardized VESA 75x75 and 100x100 mounting patterns integrated directly into the rear chassis plate. In addition, continuous lateral T-slot channels allow technicians to slide and lock mounting brackets into exact position, simplifying alignment across long multi-display shelf runs or vehicle interior bulkheads.
Interface Flexibility: Integrating with Modern Commercial Media Appliances
Engineered for versatile electrical compatibility, the monitor's mainboard includes standard HDMI, VGA video inputs, making it compatible with a wide variety of industrial computers, media sticks, and commercial playback engines. Video processing logic accurately formats incoming video streams, ensuring clean, uncompressed image reproduction across the ultra-wide active area. A dedicated Audio Socket (3.5mm) provides clean audio signal output to external speakers or intercom channels, enabling dynamic multimedia messaging. The internal power subsystem accommodates universal AC power from AC 100V~240V (50/60Hz). Engineered with energy-saving circuitry, maximum operational power consumption remains under ≤ 45w, minimizing heat buildup. Built to perform across rigorous environmental profiles, the monitor is rated for ambient temperatures spanning below10℃ ~ +50℃ and operating humidity levels up to ≤ 85%RH.
The integrated audio socket features low-noise analog signal amplification, delivering clean audio output to external directional speakers or public address distribution equipment for synchronized messaging.
Integrated 3.5mm audio connectivity provides a clean, hum-free audio signal feed to auxiliary directional speakers, enabling synchronized sound effects that amplify the impact of promotional advertising loops.
Universal Video Ingestion Across Leading Operating Systems
This display adopts a clean, open hardware topology that welcomes external video input from Windows, Android, and Linux compute engines alike. A single HDMI connection delivers seamless pixel mapping and audio-video pass-through, giving digital signage operators and kiosk engineers the latitude to implement custom CMS platforms, automated queue software, or industrial SCADA consoles without artificial hardware constraints.
Operational Vectors: Dynamic Pricing, Route Mapping, and Surveillance Telemetry
The 24.2-inch panoramic screen is engineered to deliver dynamic content in narrow architectural spaces. Applications include digital shelf-edge advertising in retail supermarkets, passenger route mapping in metro trains, telemetry monitoring in data center server racks, and panoramic menu displays in fast-food restaurants.
Automated factory assembly lines incorporate this monitor as an overhead operational pace ticker. Floor managers and machine operators track hourly production quotas, safety advisories, and machine status alerts across broad industrial plant bays.
Airport terminal operators report reduced concourse congestion when deploying panoramic displays above baggage carousels and customs lanes. International travelers receive clear, multi-lingual flight reclaim notices in an intuitive format.
B2B Production Excellence: 100% Factory Burn-In Testing and Direct Support
Direct factory procurement from ZXT ensures competitive pricing and reliable hardware delivery. We maintain in-stock extrusion tooling, offer 3-day sample dispatch, and support international partners with flexible delivery formats from finished displays to modular SKD kits.
Long-term component lifecycle management ensures that key panel models, driver boards, and mechanical dimensions remain stable across multi-year enterprise rollout phases, preventing unexpected redesigns.
Display Sourcing & Engineering FAQ
**Q1: Does the display produce electromagnetic interference with nearby equipment?**
No. Internal electronics are enclosed within a grounded metallic chassis with integrated EMI filtering circuitry, complying with commercial Class A and Class B electromagnetic compatibility standards.
**Q2: Can we test sample units before placing a volume project order?**
Yes. We strongly encourage evaluation testing and provide sample units complete with power supplies, video cables, and CAD mounting guides, ready for dispatch within three working days.
**Q3: What optical surface treatments are applied to the screen?**
The display panel features an industrial-grade anti-glare (AG) polarized surface treatment with hard-coat scratch resistance, minimizing reflections while repelling dust and environmental smudges.
B2B Commercial Consultation and Engineering Support
Contact ZXT today to request 3D CAD blueprints, technical datasheets, or evaluation samples for the 24.2-inch stretched bar LCD monitor. Our technical sales team returns official factory proposals within two hours.
