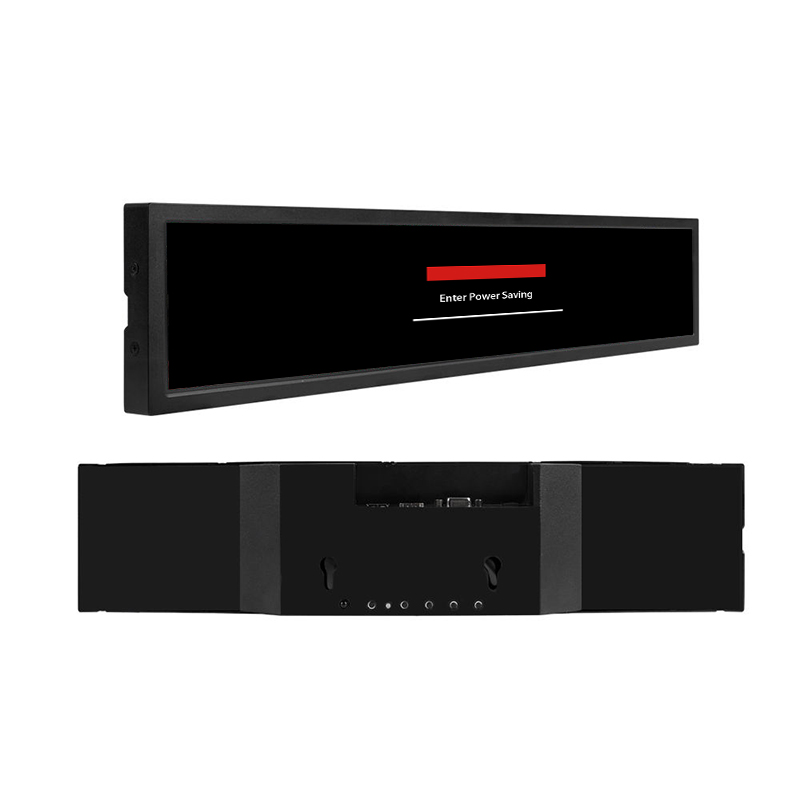

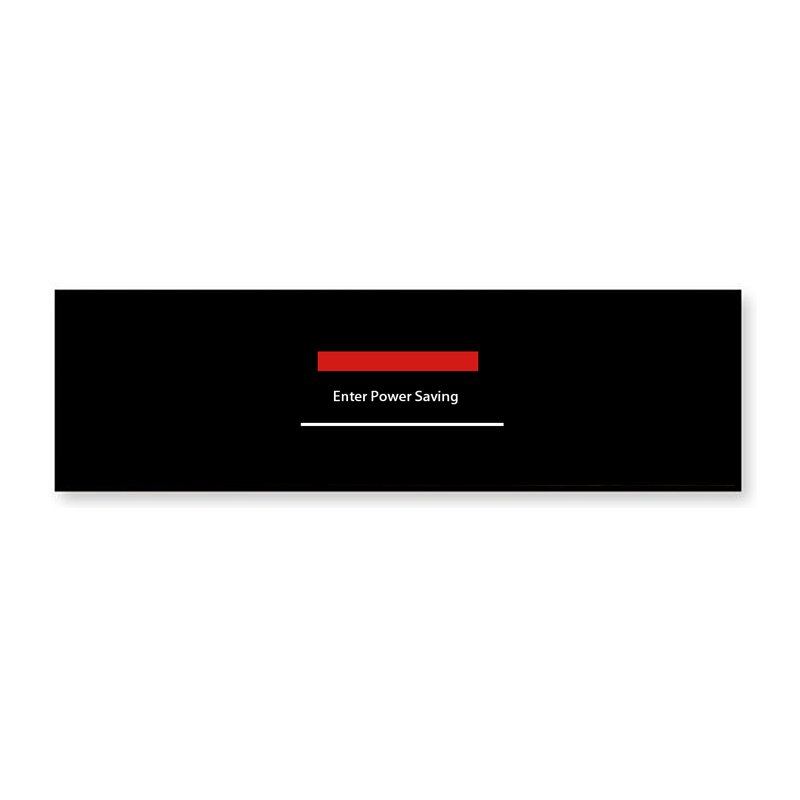

Smart Shelf Edge Advertising: 22.2 Inch Bar LCD Screen (Compact)
Commercial 22.2 inch industrial sheet metal bar monitor featuring 1920*729 ultra-wide display matrix and 250 cd/㎡ brightness. Built with in-stock tooling and ruggedized metallic housing for continuous public operation. Rapid 3-day sample dispatch worldwide.
Specifications
- Screen Size
- 22.2 Inch
- Resolution
- 1920*729
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
22.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 22.2 inch | |
Resolution | 1920*729 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 3000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
The Architectural Case for Stretched Displays: Minimizing Dead Visual Zones
Eliminating physical clutter while delivering high-impact visual data is the central purpose of the 22.2-inch stretched display. Rather than forcing oversized standard screens into narrow architectural margins, operators can install this sleek 22.2-inch unit delivering native 1920*729 resolution. It converts dormant shelf headers and transit door transoms into valuable digital real estate without requiring structural renovations.
Facilities running round-the-clock public operations require signage hardware that operates reliably with minimal human intervention. These stretched screens provide consistent, continuous operation, ensuring uninterrupted visual communication.
Operating within restricted physical envelopes without generating localized heat pockets is critical for equipment longevity. The streamlined geometry facilitates natural airflow across rear thermal conduction planes.
Luminescence Engineering: Balancing Brightness Output with Thermal Efficiency
Designed for demanding commercial applications, the 22.2-inch stretched screen features 1920*729 resolution and a 250 cd/㎡ luminance rating. With a 3000:1 contrast ratio, it renders sharp details and vivid colors. IPS technology delivers CR≥10 wide-angle IPS optical alignment viewing angles, backed by a solid-state LED backlight rated for more than 60,000 hours of maintenance-free illumination.
Intelligent thermal heat spreaders behind the LED arrays prevent localized backlight hotspots, ensuring that luminance remains uniform from edge to edge across the entire panoramic canvas.
The display matrix features high optical transmittance, allowing the backlight to operate at optimal efficiency while generating minimal internal heat, extending the operating life of surrounding driver electronics.
Enclosure Dynamics: Balancing Sleek Commercial Styling with Factory Hardening
Housed in a rugged cold-rolled steel enclosure, the 22.2-inch monitor is built to withstand mechanical stress and vibration. The electro-galvanized metal structure ensures lasting durability and reliable internal circuit shielding in demanding field installations.
The fanless mechanical design ensures silent operation and prevents dust and airborne particles from accumulating inside the casing. Heat is transferred naturally through the metal enclosure, while standard VESA patterns and lateral channels support flexible mounting.
The mechanical frame incorporates internal structural stiffeners that prevent panel warping across wide temperature fluctuations. Standardized rear VESA mounting patterns provide instant compatibility with commercial display brackets.
Hardware Connectivity: HDMI, VGA, and Audio Distribution Provisions
Equipped with comprehensive input connectivity, the display integrates HDMI, VGA video ports to ensure straightforward interfacing with commercial computing systems. Whether driven by an Android media player, a Windows industrial PC, or an embedded Linux box, the internal video processor scales incoming signals smoothly, maintaining correct aspect ratio geometry without edge cropping or horizontal stretching. An integrated Audio Socket (3.5mm) delivers clear audio output, making it simple to add auxiliary sound reinforcement for interactive promotions, queue call-outs, and transit transfer alerts. Power efficiency is a hallmark of this design. Built to run on universal standard 110V to 240V AC power input mains power, the monitor draws no more than ≤ 45w during active operation. The hardware is built to operate under demanding environmental conditions, rated for continuous performance from below10℃ ~ +50℃ with non-condensing humidity up to ≤ 85%RH.
Low overall operational power consumption keeps thermal emissions minimal, reducing the air-conditioning load in enclosed retail kiosks, transit carriages, and server room equipment racks.
Low total power draw minimizes operational utility expenses across multi-screen commercial rollouts, helping enterprise clients achieve energy conservation targets and reduce overall operating expenditure.
Unrestricted Cross-OS Compatibility for Enterprise Signage
Designed to serve as a versatile visual terminal, the display features native HDMI compatibility with all major operating systems, including Microsoft Windows, Google Android, and enterprise Linux distributions. IT departments can pair the screen with their preferred hardware platform to broadcast cloud-managed digital signage, execute custom interactive scripts, or display mission-critical telemetry without proprietary software licensing hurdles.
Strategic Installation Points: Digital Merchandising and Industrial Telemetry
The 22.2-inch stretched bar monitor provides targeted visual communication across high-traffic venues. In retail environments, it elevates shelf-edge merchandising with dynamic promotional video loops. In transportation systems, it displays passenger navigation alerts above carriage doorways. In control rooms, it presents multi-channel CCTV status feeds, and in hospitality venues, it provides sleek panoramic event signage.
Hospitality venues and boutique hotels integrate this horizontal display into reception counters and elevator lobbies. Digital guest directories, conference room event schedules, and concierge recommendations are presented with clean, modern architectural elegance.
In banking halls and municipal administrative offices, linear displays installed above service counters streamline queue management. Clear ticket calling numbers and teller status updates reduce perceived wait times and improve customer service ratings.
Supply Chain Flexibility: Assembled Displays, Open-Frame Units, and SKD Packs
Partnering with ZXT gives hardware integrators access to verified manufacturing expertise and factory-direct pricing. With extensive in-stock casing tooling, we eliminate mold fees and dispatch samples in three days, offering turnkey displays or SKD kits to optimize international logistics.
Our extensive library of proven extrusion dies and stamping tooling allows clients to deploy customized stretched bar hardware without incurring the high costs and lengthy delays of new tooling development.
Technical Consultation FAQ
**Q1: Does this display support Linux industrial distributions?**
Yes. The display works seamlessly with Ubuntu, Debian, RedHat, and embedded Linux kernels via standard HDMI video interfacing, with zero need for specialized proprietary display driver packages.
**Q2: What measures prevent image sticking during static content display?**
The industrial-grade liquid crystal cell features advanced pixel anti-burn-in properties, allowing continuous display of static price tags and route maps without visual retention or ghosting artifacts.
**Q3: Can ZXT customize the front bezel thickness or shape?**
Yes. Our in-house engineering and tooling department can modify bezel dimensions, add custom mounting flanges, or integrate flush-mount bezels to match specialized architectural and fixture requirements.
Schedule Sample Dispatch and Review Technical Specs
To evaluate the 22.2-inch stretched bar display for your next deployment, contact our Shenzhen engineering team today. We offer full CAD support, 3-day sample dispatch, and volume-tiered commercial pricing.
