Non-touchscreen

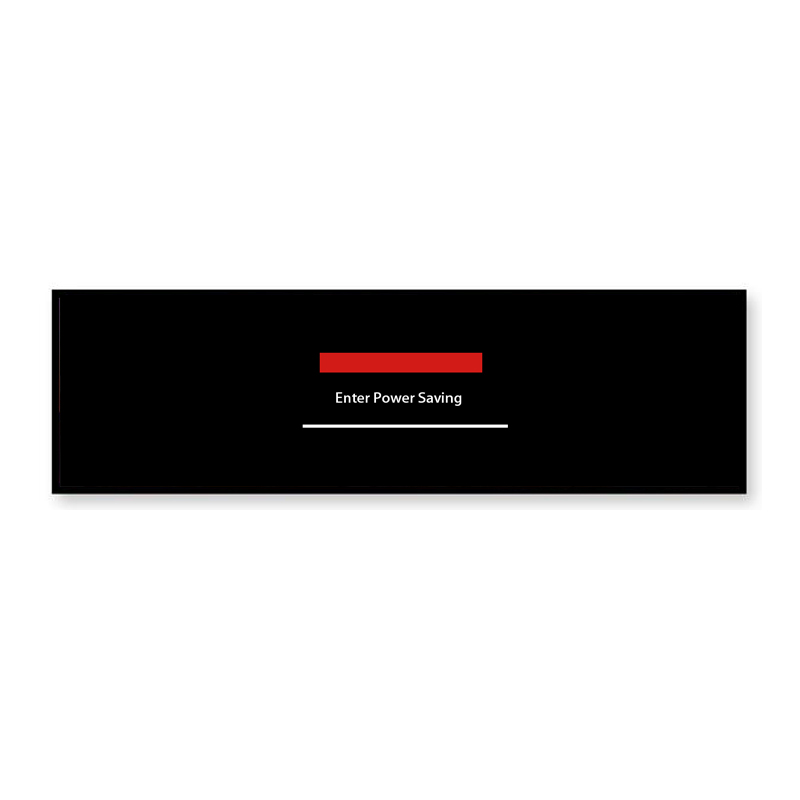

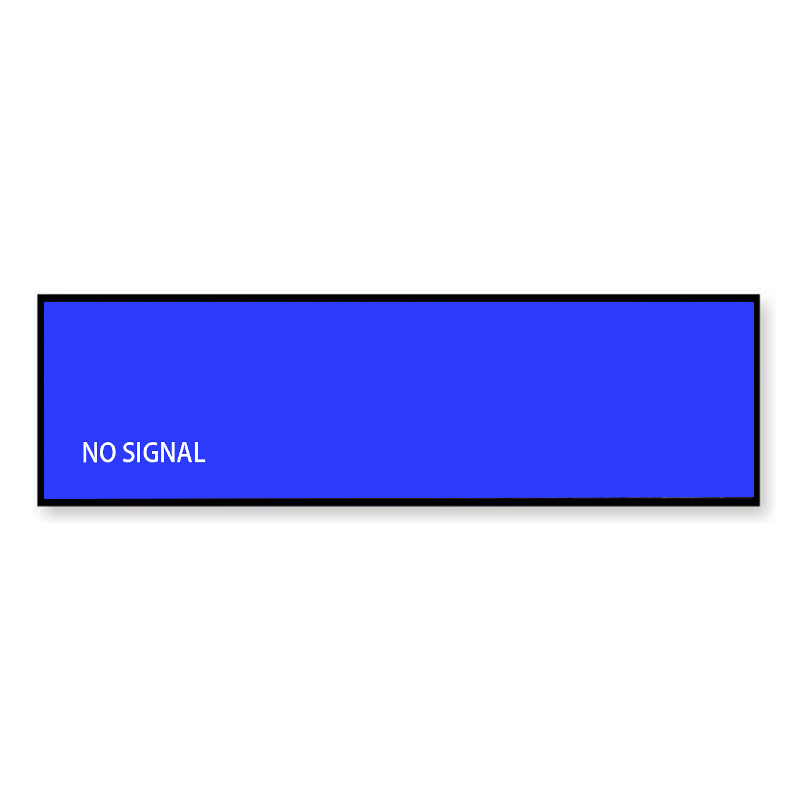

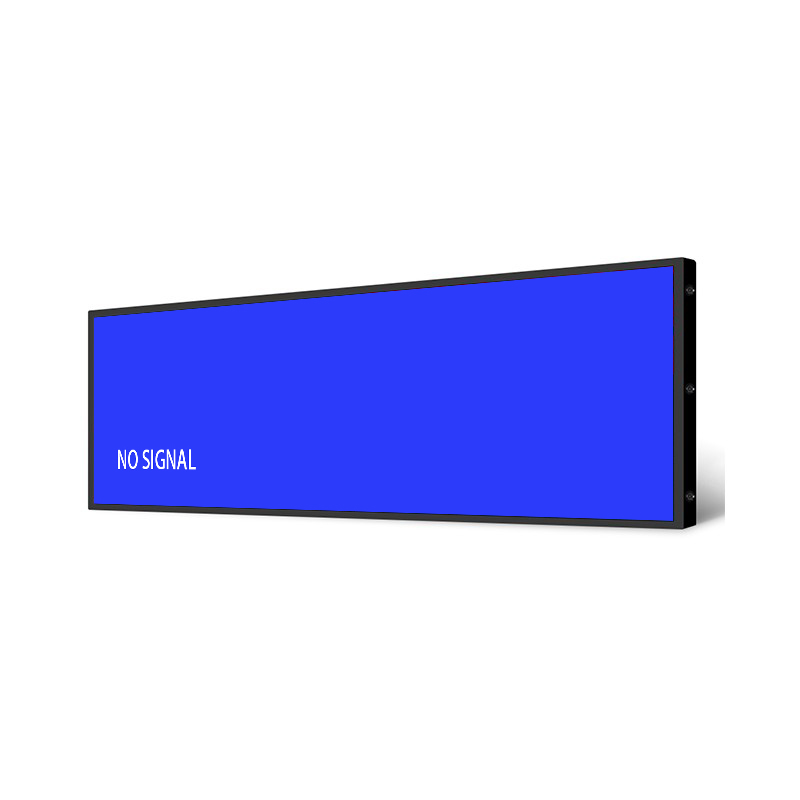

Compact 21.2 Inch Stretched LCD Display with Rugged Sheet Metal
Industrial-grade 21.2 inch industrial sheet metal bar monitor delivering 1920*331 native resolution and 250 cd/㎡ brightness. Fanless passive thermal design engineered for 24/7 commercial operation. Factory-direct pricing with complete 2D/3D CAD technical support.
Specifications
- Screen Size
- 21.2 Inch
- Resolution
- 1920*331
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
21.2 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 21.2 inch | |
Resolution | 1920*331 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 3000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Eliminating Structural Redesigns: Direct Integration into Linear Fascias
Linear visual communication is fundamentally transforming how brands and public operators engage with audiences. Where conventional displays dominate vertical walls and desktops, narrow architectural perimeters require an entirely different form factor. Standard monitors are simply too tall, obstructing customer views and complicating mechanical mounting. The 21.2-inch panoramic stretched bar LCD monitor meets these demands by packaging native 1920*331 resolution into an elongated 21.2-inch display profile, turning neglected architectural boundaries into dynamic customer touchpoints.
Modern grocery and department store merchandising demands dynamic storytelling right at the shelf edge. Panoramic digital screens capture shopper dwell time and drive impulse purchases by pairing high-definition video loops with clear pricing.
Retailers deploying digital shelf strips experience a significant reduction in pricing errors and promotional lag. Automated cloud updates ensure that promotional campaigns and regulatory price labels remain synchronized across entire store networks.
Long-Term Optical Durability: Solid-State LED Backlight Lifespan Engineering
Featuring an industrial A-grade LCD panel, the 21.2-inch stretched monitor delivers 1920*331 resolution and 250 cd/㎡ brightness. The optical stack achieves a 3000:1 contrast ratio for sharp text and vibrant color saturation. Wide-angle IPS technology ensures true IPS 178-degree wide visual cone visibility, supported by an energy-efficient LED backlight system rated for an industrial service life exceeding 60,000 hours of continuous service.
A durable surface polariser repels static dust accumulation and resists surface scratches, preserving pristine optical transparency in busy public environments with heavy foot traffic.
Solid-state LED backlights utilize efficient thermal conductive substrates, keeping diode junction temperatures low to prevent premature luminous decay and chromatic drift over extended commercial service.
Housing Ergonomics: Thin Profiles, Concealed Cabling, and Minimalist Bezels
Constructed from high-tensile cold-rolled steel, the 21.2-inch monitor casing delivers outstanding mechanical durability. The galvanized metal enclosure provides robust impact resistance and internal component protection in heavy-duty commercial and transit applications.
The display utilizes a fanless thermal management system that conducts heat directly to the outer metallic enclosure, preventing internal hotspots and dust ingress. Standardized VESA mounting holes and lateral slide tracks enable secure mechanical installation across commercial fixtures.
Engineered for modular video wall and ribbon configurations, the chassis sides feature interlocking alignment pins that ensure perfect panel-to-panel leveling. This mechanical precision creates uninterrupted visual ribbons across extended storefront fascias.
Electronic Interfacing: Video Signal Paths and Automated Raster Scaling
Seamless electronic integration into existing computing infrastructures is achieved through versatile signal interface provisions. The monitor motherboard incorporates standard HDMI, VGA video inputs, allowing immediate plug-and-play communication with standard digital signage media players, x86 industrial PCs, Android embedded compute sticks, and programmable logic controller output boards. Video signal scaling circuitry automatically synchronizes with custom ultra-wide timings, ensuring proper native scaling without horizontal image squeezing or letterboxing artifacts. Audio playback is supported via an integrated Audio Socket (3.5mm), facilitating straightforward connection to external sound bars, shelf-mounted directional audio speakers, or centralized PA amplification equipment. Operating from a universal switch-mode power supply accepting AC 100V~240V (50/60Hz), the internal power converter delivers stable low-ripple direct current to sensitive driver ICs while providing resilient protection against electrical surges and line fluctuations commonly encountered in industrial complexes. Energy efficiency remains a central engineering priority: overall operational power consumption is constrained to ≤ 45w, minimizing thermal loading and dramatically reducing total operational utility costs across large-scale multi-screen installations. The hardware is qualified for continuous operation across an ambient operating temperature range of below10℃ ~ +50℃ alongside non-condensing relative humidity levels of ≤ 85%RH.
Internal power conversion circuitry incorporates multi-stage surge suppression and electromagnetic interference filtering, shielding sensitive driver chips from electrical spikes and voltage sag on noisy commercial circuits.
Industrial-grade signal conditioning chips filter incoming video inputs to eliminate pixel jitter and timing mismatch, guaranteeing rock-solid graphical synchronization when driven by commercial digital signage players.
Vendor-Neutral Display Architecture with Plug-and-Play Video
Protect your technology investment against proprietary software dead-ends. Engineered with universal HDMI input standards, the screen communicates flawlessly with external computing hardware running Windows, Android, or Linux. System integrators maintain full autonomy to select, configure, and upgrade their media software, interactive touch applications, and remote device monitoring tools without restrictive third-party platform limitations.
Deployment Vectors: Retail Shelves, Passenger Transoms, and Control Consoles
The 21.2-inch panoramic display excels in spaces where horizontal information delivery enhances operational efficiency. In smart supermarket aisles, it provides eye-level pricing and product promotions. In transit hubs, it serves as an overhead route indicator above passenger boarding gates. In corporate headquarters, it functions as an elegant architectural directory, while in industrial server rooms, it provides clear rack-mount telemetry feeds.
In luxury cosmetics and high-end department store showcases, the display functions as an elegant digital riser that highlights brand prestige. Subtle video animations and product feature breakdowns complement the physical merchandise, elevating retail aesthetics and customer dwell time.
High-end fashion boutiques and cosmetics flagship stores utilize the display as a luxury architectural accent. Seamlessly integrated into glass shelving and perfume risers, the screen elevates brand perception while presenting subtle, cinematic promotional footage.
Factory-Direct Supply Lines: Turnkey Monitors and Modular Hardware Kits
By procuring from ZXT, international clients benefit from direct engineering support, competitive factory pricing, and fast fulfillment. With over nine years of manufacturing experience, we provide in-stock tooling, rapid 3-day sample delivery, and flexible supply formats including turnkey monitors and SKD component kits.
We support client-specified firmware customizations, including custom boot logos, fixed EDID resolution timings, and customized default input channel preferences for turnkey field rollouts.
Commercial Hardware Selection FAQ
**Q1: Is this display compatible with Android digital signage player sticks?**
Yes. Any Android media stick or compute box with an HDMI output connects directly, allowing operators to run standard Android digital signage APKs with full native resolution support.
**Q2: What enclosure materials are available?**
Depending on model and application, we supply precision architectural extruded aluminum profiles (ideal for retail shelves) and heavy-duty cold-rolled electro-galvanized sheet metal housings (for industrial racks and transit).
**Q3: Can we request customized power supply options such as DC 12V or 24V?**
Yes. In addition to universal 100-240V AC inputs, we can engineer custom DC 12V, 24V, or wide-range vehicle power conversion modules for automotive and railway rolling stock deployments.
Project Scoping and Commercial Hardware Proposal
Get in touch with ZXT's international engineering desk to discuss project specifications, CAD models, or sample orders for the 21.2-inch stretched bar monitor. Our team provides fast, professional commercial proposals.
