Non-touchscreen
19.5 Inch High Brightness Sunlight Readable Commercial Shelf Ultra Wide Stretched Bar Lcd Display
The Ultra Wide Stretched Bar LCD Display on the clothing store shelves shows models wearing the garments and provides styling suggestions. The screen boasts a brightness of 700 nits and accurate color reproduction. When a customer picks up a garment, the screen automatically switches to display different colors and sizes for that style. This increases try-on rates and cross-purchases, with data showing a sales increase of over 25%.
Specifications
- Screen Size
- 19.5 inch
- Resolution
- 1920*540
- Installation
- Shelf Edge
19.5 Inch High Brightness Sunlight Readable Commercial Shelf Ultra Wide Stretched Bar Lcd Display
Built for Bright Retail and Commercial Environments
The 19.5 Inch High Brightness Stretched Bar LCD Display is engineered for businesses that need clear, eye-catching digital signage in space-limited environments. Featuring an ultra-wide format and a high-brightness commercial-grade LCD panel, it delivers vivid images and excellent visibility even in brightly lit indoor locations or storefront windows.
As a factory-direct manufacturer, ShelfLCD provides reliable stretched LCD display solutions for global distributors, digital signage integrators, retail equipment suppliers, and OEM brands. Every project is supported by experienced engineers to ensure the display fits your exact application requirements.
19.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 19.5 inch | |
Resolution | 1920*540 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 85/85/80/80 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
The specification of Internal PCB Board | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Key Features
Designed for 24/7 commercial operation, this stretched LCD monitor combines durability with outstanding visual performance.
- High-brightness panel for enhanced visibility in strong ambient light
- Ultra-wide aspect ratio ideal for narrow installation spaces
- Commercial-grade components for continuous operation
- Wide viewing angles with sharp image quality
- Multiple input interfaces for flexible integration
- Horizontal, vertical, wall-mounted, or embedded installation options
Whether installed above retail shelves, inside display windows, or as part of a digital signage network, the display delivers stable performance and a professional appearance.
OEM & ODM Customization
Every commercial project has unique requirements. That's why ShelfLCD offers comprehensive OEM and ODM manufacturing services to help customers build products that match their market demands.
Customization options include:
- Display brightness adjustment
- Custom housing and frame design
- Android, Linux, or Windows operating systems
- Touch screen integration
- Camera, NFC, and sensor support
- Private logo printing
- Customized packaging
- Firmware and software optimization
- Interface configuration based on project requirements
From prototype development to mass production, our engineering team works closely with customers to create reliable and scalable display solutions.

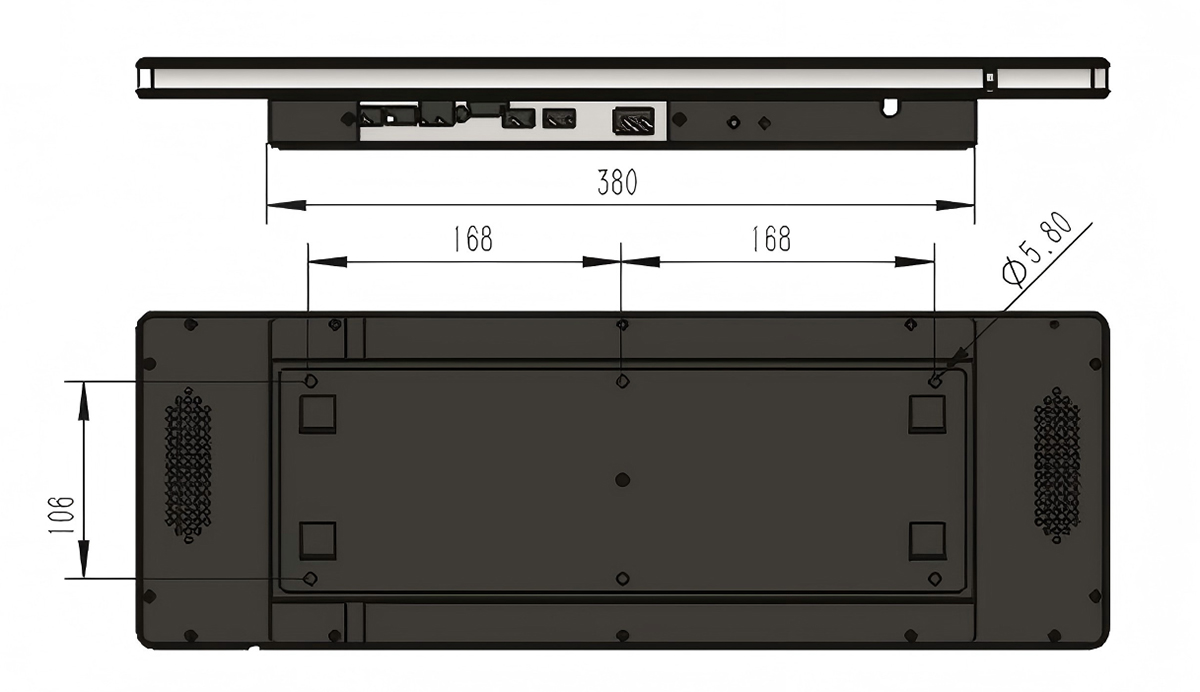

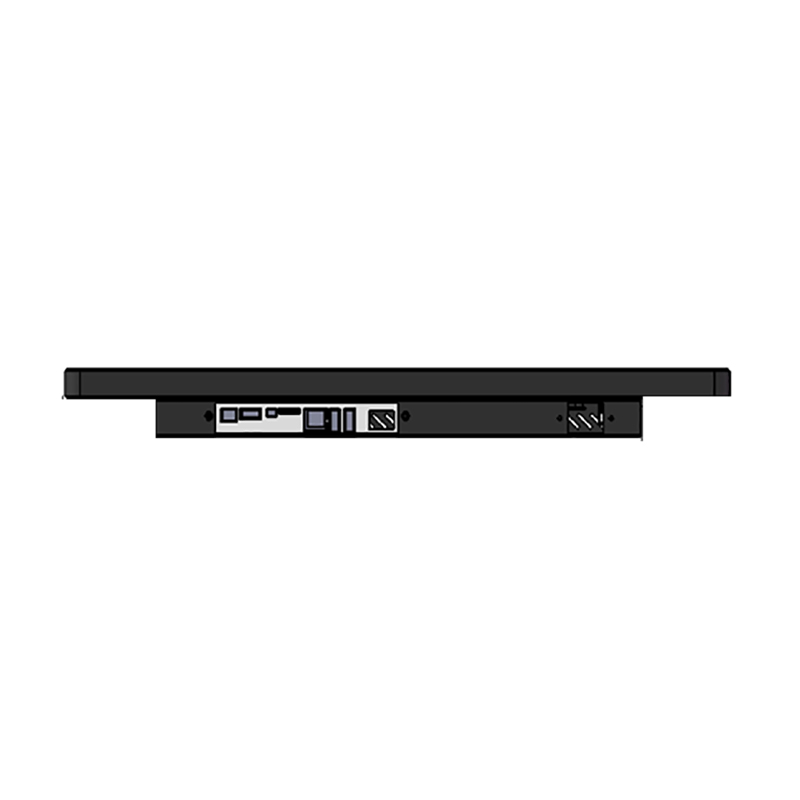

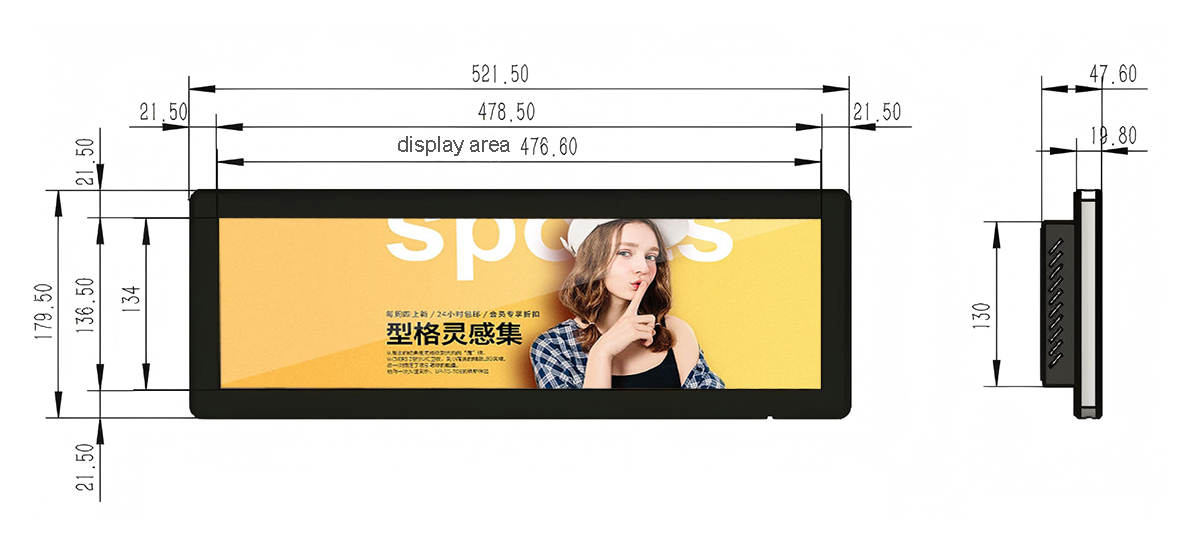

Product Dimension as follows:
Factory Direct Manufacturing
Working directly with the manufacturer offers significant advantages over purchasing through trading companies.
ShelfLCD controls every stage of production, including component sourcing, assembly, quality inspection, and packaging. This allows us to provide competitive pricing, consistent product quality, shorter lead times, and dependable technical support throughout the entire project.
Each display undergoes strict quality testing before shipment to ensure stable performance and long service life.
Typical Applications
The 19.5-inch stretched LCD display is widely used in:
- Retail shelf-edge advertising
- Supermarkets and convenience stores
- Shopping malls
- Storefront window displays
- Airports and railway stations
- Bus and metro information systems
- Exhibition halls
- Museums
- Corporate reception areas
- Restaurants and digital menu boards
Its slim design and ultra-wide format make it an excellent solution wherever conventional displays cannot fit.
Reliable After-Sales Support
A successful project doesn't end with product delivery. ShelfLCD provides responsive after-sales service to help customers deploy and maintain their displays with confidence.
We offer a one-year warranty, lifetime technical consultation, remote troubleshooting, spare parts support, and professional assistance for future upgrades or repeat orders. Our goal is to build long-term partnerships by delivering dependable products and reliable service.
Why Choose ShelfLCD?
With years of manufacturing experience in commercial LCD display solutions, ShelfLCD has become a trusted supplier for customers worldwide. Our factory-direct production, flexible OEM & ODM capabilities, strict quality control, and customer-focused support enable businesses to launch successful digital signage projects with confidence.
Whether you need standard products or fully customized solutions, our team is ready to help you create the right display for your application.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
