Non-touchscreen
19 Inch Commercial Shelf Bar LCD Monitor for Product Pricing & Ads
Direct manufacturer of 19 inch ultra-wide industrial sheet metal bar monitor (1920*388, 250 cd/㎡). High-definition commercial display delivering 60,000-hour backlight longevity for public transit and retail signage. Zero tooling fees on standard sizes.
Specifications
- Screen Size
- 19 Inch
- Resolution
- 1920*388
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
19 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 19 inch | |
Resolution | 1920*388 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 30w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Horizontal Form Factors: Purpose-Built Solutions for Narrow Physical Footprints
Maximizing spatial productivity is essential in high-density retail aisles, airport passenger corridors, and vehicle passenger cabins. Standard desktop-format screens obstruct customer views and complicate mechanical mounting due to their bulky vertical proportions. The 19-inch stretched commercial display addresses this spatial conflict through an ultra-wide form factor delivering native 1920*388 resolution across an active 19-inch diagonal. This specialized geometry fits flush into horizontal headers, narrow shelving channels, and compact control desks, delivering vibrant graphics without demanding vertical headroom.
In high-traffic transit corridors, clear visual hierarchy is essential for passenger comfort. Panoramic displays mounted overhead deliver critical wayfinding data in an intuitive linear format that commuters can digest in seconds.
Commercial interiors increasingly emphasize clean, unobtrusive architectural lines. The slender profile of this display integrates organically into modern store designs, avoiding the bulky industrial look of conventional commercial monitors.
True IPS Technology: Wide Symmetrical Viewing Angles Without Chromatic Drift
Engineered for clarity and longevity, the 19-inch panoramic display features a native resolution of 1920*388 and a brightness rating of 250 cd/㎡. The anti-glare surface minimizes ambient reflections, while the 1000:1 contrast ratio and IPS symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angles ensure optimal image quality from all perspectives. The backlight is rated for over 60,000+ operational hours of 24/7 commercial performance.
The LED backlight system incorporates premium phosphor coatings that deliver a broad, balanced color spectrum, ensuring that dynamic video sequences render with lifelike warmth and accurate saturation.
The IPS alignment layer ensures that contrast and color saturation remain virtually identical across the entire 178-degree viewing cone, allowing passersby approaching from sharp angles to read information effortlessly.
Vibration Resistance: Heavy-Gauge Enclosure Engineering for Transit and Industry
The 19-inch sheet metal enclosure is engineered for harsh industrial environments, featuring a cold-rolled steel frame with corrosion-resistant finishing. This sturdy design protects internal components from factory vibrations and physical knocks.
Thermal performance is optimized through passive conduction, using the external metal body to dissipate heat away from internal electronics. This fanless system ensures silent operation and protects internal circuits from dust. Rear VESA patterns and lateral slide channels support flexible mounting configurations.
The housing design includes dedicated cable strain-relief tie points that prevent video and power cords from vibrating loose over years of service. Accessible side-mounting screw holes facilitate quick integration into self-service kiosk fascias.
Interfacing Standards: Audio Output Jack and Industrial Video Scaling Logic
The display includes HDMI, VGA video interfaces for plug-and-play integration with media players and industrial systems. Audio output is supported via a Audio Socket (3.5mm). Built to accept universal AC 100V~240V (50/60Hz) power with an efficient draw of ≤ 30w, it is rated for environmental conditions of below10℃ ~ +50℃ and ≤ 85%RH.
Low standby power consumption complies with international commercial energy efficiency standards, helping enterprise clients meet corporate sustainability and green building certification goals.
Universal mains power compatibility simplifies worldwide distribution, allowing global retail brands to deploy the identical hardware model across North American, European, and Asian locations seamlessly.

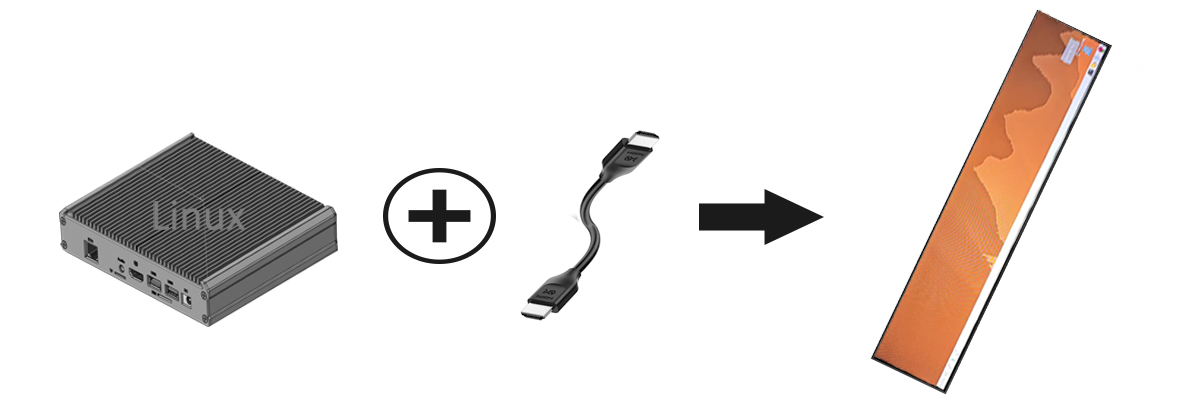

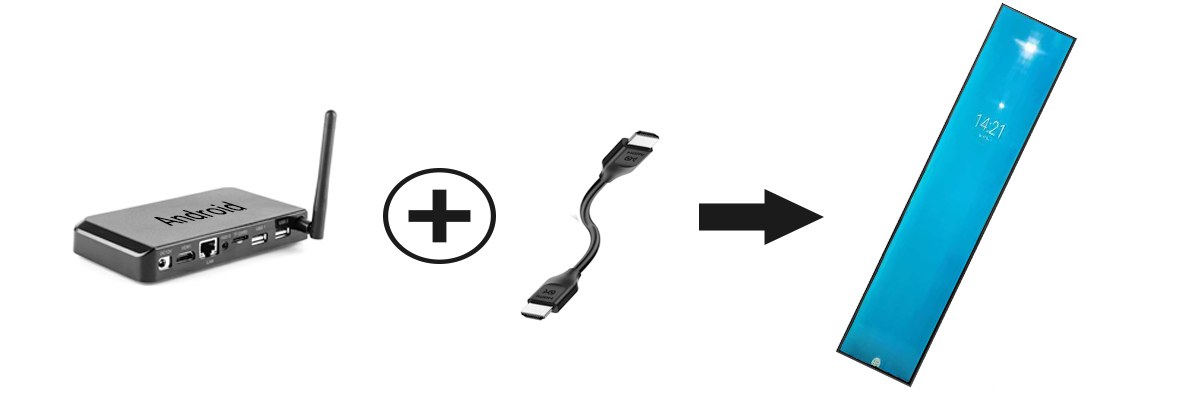

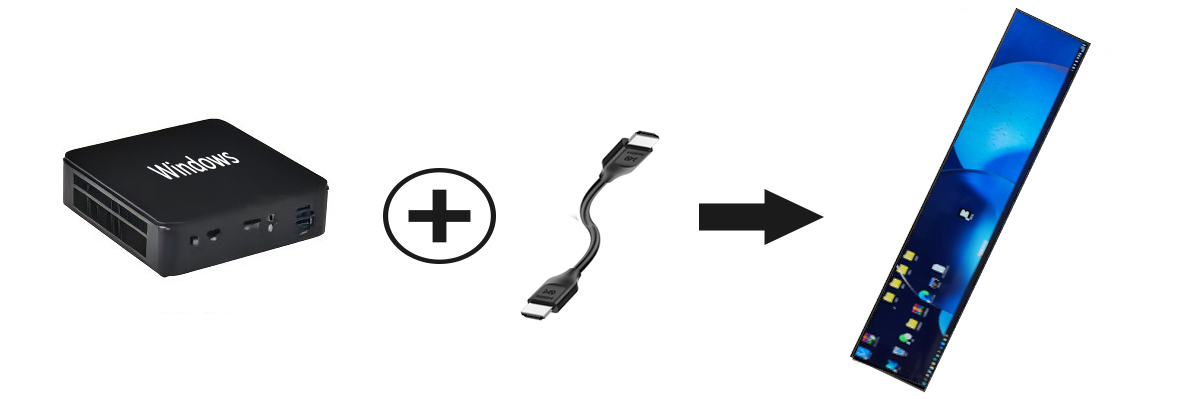

Effortless OS Migration Across Windows, Android, and Linux
Modern enterprise signage networks demand agile software transitions. Built without closed proprietary system locks, this display accepts direct video feeds from any Windows micro-PC, Android network signage player, or Linux industrial box via standard HDMI cabling. This universal connectivity guarantees that your hardware remains fully compatible whenever you upgrade digital signage CMS platforms or change underlying operating systems.
Real-World Scenarios: Maximizing Audience Engagement Across Key Sectors
The expansive architectural scale of the 19-inch stretched display delivers monumental visual impact across large-scale commercial facilities: 1. Command & Control Centers (CCTV / SOC / NOC): Serving as central panoramic video ribbons in security, emergency dispatch, and traffic control rooms without distracting bezel seams. 2. Airport Flight Information Display Systems (FIDS): Mounted across departure halls and check-in counters to present panoramic multi-gate flight schedules visible across long distances. 3. Corporate Executive Briefing Centers: Integrated into boardroom feature walls and museum exhibition pavilions to deliver continuous ultra-wide multimedia presentations. 4. Arena Concourse Digital Ribbons: Positioned along stadium entryways and VIP hospitality lounges for continuous live match scoring, sponsor branding, and venue directions.
Quick-service restaurants and urban cafes utilize this ultra-wide display above ordering counters to present dynamic panoramic menu selections. Vivid food photography, combo pricing, and real-time out-of-stock indicators help guide customer ordering choices, reducing counter queue wait times during peak hours.
Quick-service restaurants deploying panoramic digital menu strips experience faster order processing and reduced counter wait times. Clear combo photography and real-time out-of-stock indicators guide customer choices before they reach the ordering terminal.
Manufacturer Agility: Permanent Tooling Inventories and Custom Bracket Finishing
ZXT delivers source-factory reliability for global display integrators. Our in-house manufacturing facilities maintain extensive tooling inventories, eliminating NRE mold charges and enabling 3-day sample shipping. We support overseas clients with fully assembled monitors or modular SKD kits designed to lower import duties and freight costs.
Strict quality management systems govern every stage of production, from incoming optical inspection of open-cell panels to computerized colorimeter calibration and vibration table testing.
Display Integration & Technical FAQ
**Q1: Can we control the display power state remotely?**
Yes. The monitor supports standard HDMI CEC power synchronization and automated signal-sensing sleep modes, allowing connected media players to wake or sleep the display automatically according to operating schedules.
**Q2: What is the operating temperature range for this hardware?**
The display is engineered for wide-temperature commercial stability, operating reliably across ambient environments from -10°C to +50°C (with optional extended wide-temperature packages from -20°C to +70°C).
**Q3: How does ZXT guarantee consistent quality across volume production?**
Every production run undergoes 100% factory burn-in testing under elevated temperature and humidity conditions, optical colorimeter calibration, and rigorous mechanical vibration screening before packaging.
Engineering Sales Contact and Factory Direct Pricing
Request an evaluation sample or volume price schedule for the 19-inch panoramic stretched bar display by contacting our technical team. Provide your installation details for a tailored commercial quotation within two hours.
