Non-touchscreen
Cut Bar Monitor (19.5 Inch) with High Resolution & HDMI/VGA Input

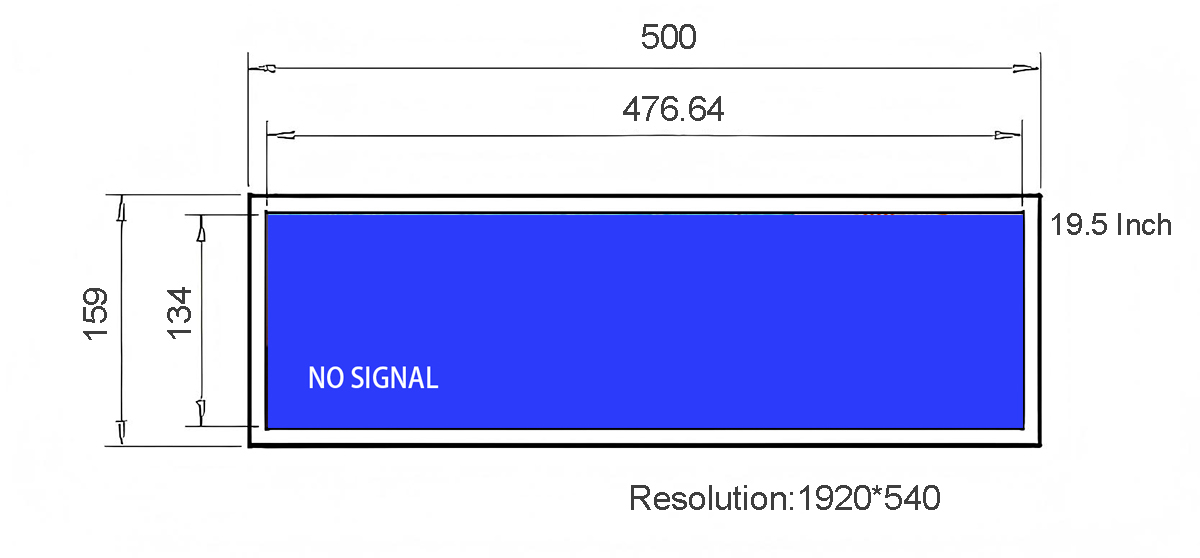

Source manufacturer supply of 19.5 inch aluminum profile stretched display with 1920*540 resolution and 250 cd/㎡ brightness. High-durability commercial display engineered for 24/7 public service. Complete 2D/3D CAD mounting blueprints upon request.
Specifications
- Screen Size
- 19.5 Inch
- Resolution
- 1920*540
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
19.5 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 19.5 inch | |
Resolution | 1920*540 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 85/85/80/80 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+G Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Commercial Space Challenges: Overcoming Vertical Clearances with Panoramic Displays
Store fixture designers and transit architects frequently encounter spaces where traditional 16:9 displays cannot be accommodated. The 19.5-inch ultra-wide bar monitor resolves this challenge by providing a low-profile panoramic viewing format. Displaying 1920*540 native pixels across its 19.5-inch diagonal, it delivers continuous brand messaging, dynamic pricing, and route guidance along narrow architectural borders that would otherwise remain inactive.
Integrating panoramic hardware into commercial fixtures eliminates the visual clutter associated with standard monitors. The display becomes an organic part of the fixture, enhancing interior aesthetics while delivering essential information.
In busy transportation terminals, passengers require instant, intuitive visual cues. Overhead horizontal displays provide continuous sightline guidance that travelers can scan effortlessly while walking through crowded concourses.
Long-Term Optical Durability: Solid-State LED Backlight Lifespan Engineering
Featuring an industrial A-grade LCD panel, the 19.5-inch stretched monitor delivers 1920*540 resolution and 250 cd/㎡ brightness. The optical stack achieves a 1000:1 contrast ratio for sharp text and vibrant color saturation. Wide-angle IPS technology ensures true IPS 178-degree wide visual cone visibility, supported by an energy-efficient LED backlight system rated for an industrial service life exceeding 60,000 hours of continuous service.
A durable surface polariser repels static dust accumulation and resists surface scratches, preserving pristine optical transparency in busy public environments with heavy foot traffic.
Solid-state LED backlights utilize efficient thermal conductive substrates, keeping diode junction temperatures low to prevent premature luminous decay and chromatic drift over extended commercial service.
Vibration Resistance: Heavy-Gauge Enclosure Engineering for Transit and Industry
Featuring an ultra-thin architectural aluminum frame, the 19.5-inch display offers a borderless appearance along retail product displays. The rigid alloy extrusion ensures mechanical stability while keeping weight to a minimum.
Thermal performance is optimized through passive conduction, using the external metal body to dissipate heat away from internal electronics. This fanless system ensures silent operation and protects internal circuits from dust. Rear VESA patterns and lateral slide channels support flexible mounting configurations.
The housing design includes dedicated cable strain-relief tie points that prevent video and power cords from vibrating loose over years of service. Accessible side-mounting screw holes facilitate quick integration into self-service kiosk fascias.
Electronic Longevity: High-Grade Industrial Capacitors and Protective Circuits
Featuring HDMI, VGA video connections, the monitor ensures broad compatibility with commercial computing hardware. An integrated Audio Socket (3.5mm) facilitates audio connectivity. The unit runs on universal global 100~240V line voltage at 50/60Hz power, drawing ≤ 45w, and operates stably across temperature ranges of below10℃ ~ +50℃ and humidity of ≤ 85%RH.
The mainboard firmware includes intelligent watchdog monitoring that automatically recovers video synchronization in the event of external signal interruptions, eliminating manual service calls.
The display's low thermal footprint reduces the cooling burden in enclosed kiosk cabinets, allowing system builders to design tighter, more compact self-service enclosures without auxiliary fans.
Open Hardware Standards: Seamless Windows, Android, and Linux Support
By adhering strictly to open commercial hardware standards, this monitor ensures effortless multi-OS synchronization via standard HDMI connections. System architects can freely pair the screen with external Windows computing hardware, cost-effective Android digital signage units, or robust Linux industrial microcontrollers, ensuring seamless compatibility with any enterprise software platform.
Application Spectrum: From Smart Supermarkets to Public Transportation
The panoramic geometry of the 19.5-inch stretched display delivers outstanding visual utility across high-traffic commercial environments: 1. Supermarket Shelf-Edge Merchandising: Installed along grocery gondola headers to present eye-level video ads, brand storytelling, and dynamic sales banners at the point of purchase. 2. Quick-Service Restaurant Menu Boards: Mounted above order counters in fast-food chains and coffee shops to display panoramic combo menus and pricing in narrow horizontal bands. 3. Public Bus & Tram Passenger Information: Installed on interior vehicle ceiling ribs to deliver real-time stop updates, route progress bars, and transfer alerts. 4. Elevator Transom & Lobby Signage: Positioned horizontally across elevator door headers for building tenant directories, commercial notices, and property updates.
For passenger railway and metro operators, installing this display format inside train carriages improves route comprehension and transit safety. Dynamic graphic route maps display real-time line progress, upcoming interchange connections, and bilingual station advisories, ensuring daily commuters and tourists navigate complex transit networks with ease.
In municipal transit deployments, overhead route mapping displays significantly reduce passenger boarding confusion. Commuters boarding crowded subway cars can immediately verify their direction of travel and upcoming transfer hubs, improving passenger boarding efficiency during rush hours.
Global Logistics Optimization: SKD/CKD Deliveries and Import Tariff Savings
By establishing a direct factory relationship with ZXT, your company secures factory-direct commercial terms backed by genuine industrial engineering capability. With over nine years of dedicated experience and hundreds of deployed projects worldwide, we keep standard extrusion dies and tooling components permanently in stock. This eliminates upfront tooling charges on standard sizes while enabling rapid sample shipping within 72 hours of project sign-off. We cater to international contractors and volume resellers by offering flexible packaging formats. Order fully assembled turnkey commercial monitors, frameless open-cell modules, or CKD/SKD modular kits designed to optimize sea and air container utilization and lower local import tariffs. Our dedicated engineering team assists with every phase of mechanical and electronic integration, providing full CAD support and factory testing.
Flexible packaging options—from individual retail-ready cartons to high-density bulk export pallets—are engineered to maximize container space utilization and protect hardware during long ocean transit.
Procurement & Integration FAQ
**Q1: Does this display generate fan noise during operation?**
No. The monitor utilizes a 100% passive fanless conduction cooling architecture that dissipates heat naturally through the metallic chassis, operating in total acoustic silence while preventing internal dust accumulation.
**Q2: Are touch screen options available for this stretched format?**
Yes. We offer optional projected capacitive (PCAP) 10-point multi-touch overlays with Morse 7 explosion-proof tempered glass and optical bonding, as well as infrared (IR) touch frames for specialized kiosk builds.
**Q3: Can overseas partners order this monitor in SKD or CKD format?**
Yes. To help international contractors reduce customs tariffs and air freight expenses, ZXT supplies complete knocked-down (CKD) or semi-knocked-down (SKD) kits including tested LCD panels, driver boards, and raw casings.
Commercial Quotation and Production Scheduling
Contact our technical sales team to request mechanical drawings, discuss volume pricing, or arrange a 3-day sample dispatch for the 19.5-inch panoramic stretched monitor. We deliver prompt factory-direct quotations and technical support.
