Non-touchscreen

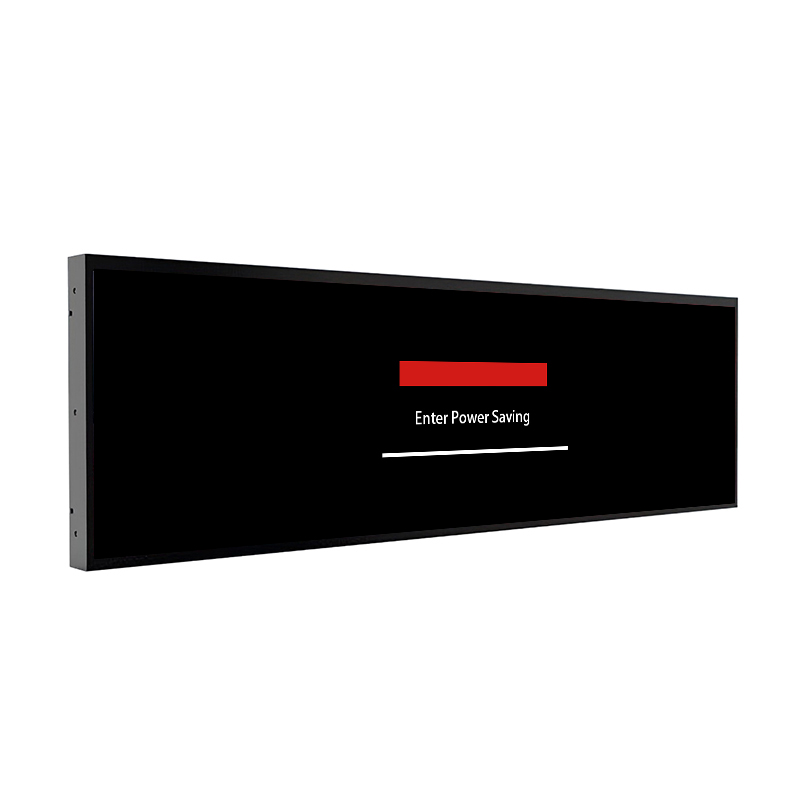

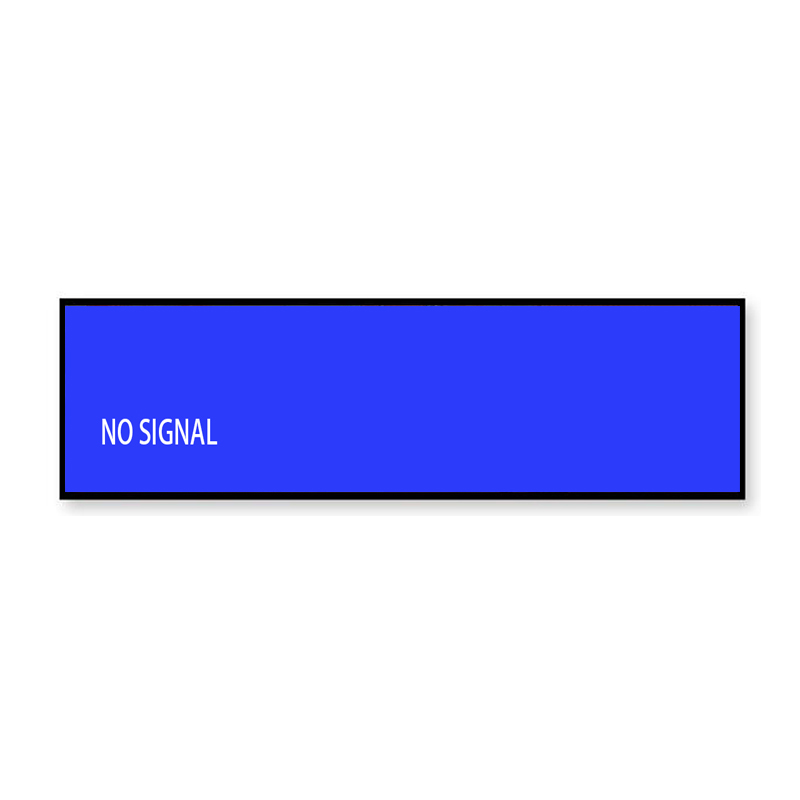

Smart Shelf Edge Advertising: 19.1 Inch Bar LCD Screen (Compact)
Wholesale 19.1 inch industrial sheet metal bar monitor featuring native 1920*388 resolution and 250 cd/㎡ brightness. Commercial-grade 24/7 reliability for retail shelves, public transit, and industrial equipment. Direct from source manufacturer with in-stock tooling, zero mold charges, and 3-day sample dispatch.
Specifications
- Screen Size
- 19.1 Inch
- Resolution
- 1920*388
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
19.1 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 19.1 inch | |
Resolution | 1920*388 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 30w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Rethinking Linear Spaces: The Rise of Specialized Stretched Bar Displays
Spatial efficiency is a defining metric in contemporary commercial architecture. High-throughput railway stations, supermarket aisles, and manufacturing cleanrooms require real-time information delivery, but lack the physical height required for conventional computer screens. The 19.1-inch ultra-wide bar monitor represents a targeted hardware solution to this dilemma. Delivering 1920*388 native resolution across an active 19.1-inch area, this display integrates flush into narrow headers, shelf channels, and equipment fascias, providing vibrant high-definition media without altering interior structural boundaries.
Deploying digital signage along narrow architectural boundaries transforms passive building surfaces into interactive communication channels. From commercial banking counters to hospital triage halls, panoramic displays streamline public traffic flow and enhance customer service delivery.
In demanding transit and retail venues, space optimization is both an aesthetic and functional necessity. By converting narrow wall headers and shelf fronts into active information zones, facility managers maximize commercial utility per square meter.
Engineered Optics: High Pixel Density and Glare Suppression for Public Spaces
Equipped with an industrial-grade liquid crystal matrix, the 19.1-inch stretched monitor delivers native 1920*388 resolution and a luminous output of 250 cd/㎡. It provides crisp, high-contrast imagery backed by a 1000:1 contrast ratio, ensuring text and graphics remain readable under intense interior lighting. True IPS technology provides ultra-wide 89/89/89/89 horizontal and vertical sightlines viewing angles, while the backlight system is rated for over 60,000 hours of continuous 24/7 commercial duty of dependable operation.
Optical bonding technology minimizes internal air gaps between the cover glass and liquid crystal cell, virtually eliminating internal light refraction and delivering crisp, surface-printed visual clarity.
Fast liquid crystal transition times prevent image blurring and ghosting during high-speed promotional video animations, ensuring that fast-moving product footage appears fluid and natural.
Structural Framing: Rigid Metallic Construction with Flush Architectural Fit
The 19.1-inch monitor is enclosed in a durable cold-rolled steel chassis designed for continuous industrial use. Its reinforced metal frame absorbs physical impacts and track vibration, ensuring long-term operational stability in demanding public transit and factory settings.
The display enclosure is engineered for efficient passive heat dissipation, utilizing internal thermal spreaders and the outer metallic frame to cool internal components. This fanless design ensures silent, maintenance-free performance. Standard VESA mounting provisions and lateral channels provide versatile installation options.

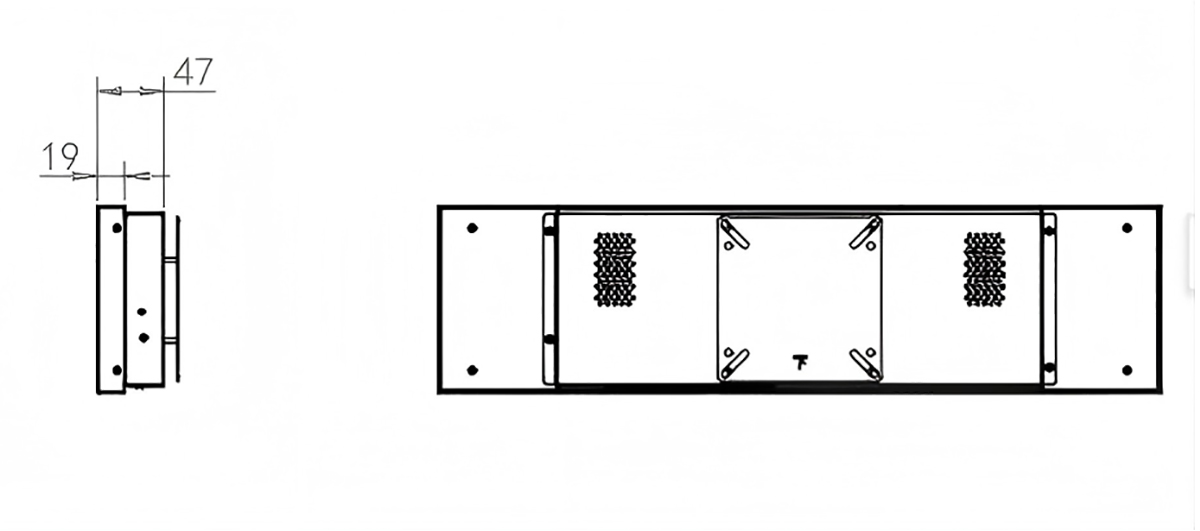

The rear panel incorporates standardized VESA hole arrays with reinforced internal backing plates to support heavy articulated commercial wall arms. Lateral slide-nut channels provide additional anchoring points for custom security locks.
Hardware Integration: Direct Video Linking Without Specialized External Adapters
The display is equipped with HDMI, VGA video ports for direct connection to media players and embedded PCs. An audio connection is provided via a Audio Socket (3.5mm). The power supply accommodates standard 110V to 240V AC power input with an efficient power rating of ≤ 30w, operating reliably across temperatures of below10℃ ~ +50℃ and humidity up to ≤ 85%RH.
Comprehensive electrical isolation safeguards video input ports against ground loop interference, ensuring hum-free audio and noise-free video signals in complex industrial AV setups.
Built-in over-voltage, over-current, and short-circuit protection circuits safeguard the monitor against unexpected electrical faults, preventing costly equipment damage during power grid surges.
Universal OS Adaptability: Freedom from Proprietary Lock-In
Enterprise display infrastructure requires absolute software freedom. By separating the optical display panel from host processing logic, this monitor prevents premature hardware retirement caused by outdated onboard chipsets. Connecting an external media player running Windows, Android, or Linux via HDMI provides instant video synchronization, allowing enterprise IT managers to run their chosen digital signage CMS or telemetry dashboard unimpeded.
Application Spectrum: From Smart Supermarkets to Public Transportation
The panoramic geometry of the 19.1-inch stretched display delivers outstanding visual utility across high-traffic commercial environments: 1. Supermarket Shelf-Edge Merchandising: Installed along grocery gondola headers to present eye-level video ads, brand storytelling, and dynamic sales banners at the point of purchase. 2. Quick-Service Restaurant Menu Boards: Mounted above order counters in fast-food chains and coffee shops to display panoramic combo menus and pricing in narrow horizontal bands. 3. Public Bus & Tram Passenger Information: Installed on interior vehicle ceiling ribs to deliver real-time stop updates, route progress bars, and transfer alerts. 4. Elevator Transom & Lobby Signage: Positioned horizontally across elevator door headers for building tenant directories, commercial notices, and property updates.
For passenger railway and metro operators, installing this display format inside train carriages improves route comprehension and transit safety. Dynamic graphic route maps display real-time line progress, upcoming interchange connections, and bilingual station advisories, ensuring daily commuters and tourists navigate complex transit networks with ease.
In municipal transit deployments, overhead route mapping displays significantly reduce passenger boarding confusion. Commuters boarding crowded subway cars can immediately verify their direction of travel and upcoming transfer hubs, improving passenger boarding efficiency during rush hours.
In-House Engineering Support: 2D/3D CAD Models and Technical Collaboration
Direct sourcing from ZXT gives your enterprise a competitive advantage in display hardware quality, cost efficiency, and lead-time reliability. With over nine years of specialized R&D and hundreds of commercial implementations worldwide, we maintain a complete catalog of in-stock profile tooling. This allows system integrators to deploy customized stretched bar hardware without incurring custom mold fees, with evaluation samples dispatched in as little as three days. We offer adaptable fulfillment options to streamline international logistics. Clients can order fully certified finished monitors, open-frame assemblies ready for enclosure drop-in, or complete SKD/CKD component shipments that allow overseas partners to assemble locally and minimize import duties. Our in-house R&D staff collaborates directly with client engineers, providing full 2D and 3D CAD modeling data and custom firmware support.
Dedicated international sales engineers provide prompt technical support, returning detailed commercial proposals, dimensional drawings, and technical feasibility reviews within two business hours.
Field Application & Installation FAQ
**Q1: How does this monitor connect to external audio systems?**
The display extracts audio from the incoming HDMI stream and routes it through an onboard 3.5mm audio socket, allowing installers to link external sound systems for synchronized promotional announcements.
**Q2: What mounting standards are supported on the rear chassis?**
The rear casing incorporates industry-standard VESA mounting patterns alongside adjustable lateral slide-nut tracks, supporting wall brackets, ceiling drop-poles, articulated arms, and custom cabinet cutouts.
**Q3: Can ZXT adjust panel brightness for semi-outdoor or sunlit storefronts?**
Yes. In addition to standard commercial luminance ratings, we offer custom high-brightness LED backlight configurations reaching up to 1000+ nits, equipped with automatic ambient light dimming sensors.
Discuss Project Specifications and Volume Price Tiers
Reach out to ZXT's commercial display team to evaluate sample hardware, review mechanical tolerances, or discuss volume OEM/ODM pricing for the 19.1-inch stretched display. We provide fast technical responses and official quotes.
