Shelf Edge Bar Monitor – 16.4 Inch Ultra-Wide Display for Supermarkets
Direct from manufacturer: 16.4 inch industrial sheet metal bar monitor (1280*680, 250 cd/㎡). High-density panoramic visual solution for space-constrained architectural perimeters. Zero NRE mold fees, fast 3-day sampling, and custom OEM/ODM support.
Specifications
- Screen Size
- 16.4 Inch
- Resolution
- 1280*680
- Brightness
- 250 cd/㎡
- Interface
- HDMI / VGA
16.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 16.4 inch | |
Resolution | 1280*680 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1000:1 | |
Viewing Angle(H/v) | 89°/89°/89°/89° (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 30w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Spatial Dilemma: Why Conventional 16:9 Displays Obstruct Modern Fixtures
Commercial fixture design increasingly demands high-density visual communication without sacrificing vertical clearance. Standard square monitors take up too much vertical space, making them impractical for horizontal shelf rails, transit headers, and industrial control consoles. Engineered specifically for these horizontal perimeters, the 16.4-inch panoramic display establishes a clean balance between compact dimensions and wide-format visual presence. With a native raster of 1280*680, it allows multi-column split-screen graphics and automated status alerts to operate seamlessly within narrow spaces previously deemed unusable for dynamic digital media.
The streamlined horizontal geometry enables store architects to maintain cohesive interior sightlines. Customers browsing retail aisles enjoy unimpeded views of premium product displays while receiving relevant pricing and promotional information directly at eye level.
Eliminating the need for structural redesigns translates to substantial capital savings for project contractors. Installation teams can utilize existing retail track extrusions or vehicle bulkheads without commissioning expensive custom millwork or heavy mechanical brackets.
Panel Specifications: Industrial-Grade Backlight Reliability and Luminous Stability
Delivering high visual fidelity across an ultra-wide active area, the 16.4-inch stretched display features an industrial LCD panel with native 1280*680 resolution. This elongated aspect ratio provides ample screen real estate for split-screen layouts, dynamic tickers, and multi-media video banners without graphical distortion or letterboxing. With a factory-calibrated luminance output of 250 cd/㎡, the display ensures consistent optical clarity in bright interior commercial environments. Supported by a native contrast ratio of 1000:1, it renders crisp text, rich graphics, and deep blacks. Equipped with IPS wide-viewing technology, the display delivers a symmetrical true IPS 178-degree wide visual cone viewing cone, while the LED backlight module is rated for more than an industrial service life exceeding 60,000 hours of continuous operation.
The active matrix substrate features uniform pixel pitch alignment that eliminates distracting moiré patterns and visual banding, ensuring smooth photographic gradients in commercial advertising loops.
Precision factory color profiling guarantees that multi-screen video ribbon installations display identical color temperatures and white points, presenting a seamless visual narrative across extended architectural runs.
Material Selection: Thermal Conductivity, Weight Optimization, and Corrosion Defense
Built with an industrial-grade steel housing, the 16.4-inch display provides robust mechanical protection for heavy machinery and transport consoles. The electro-galvanized cold-rolled metal construction ensures high rigidity and effective electromagnetic interference defense.
A fanless passive cooling architecture ensures reliable thermal management without acoustic noise or dust intake. Heat is conducted smoothly to the external chassis, extending the operational life of internal electronics. The rear housing incorporates standard VESA hole configurations and lateral slide tracks for straightforward mounting.
For vehicle and marine console installations, the enclosure includes perimeter flange gaskets that seal against dust and water splash. Heavy-gauge corner brackets absorb structural flexing and road vibration during continuous fleet operation.
Universal Power Conversion: Resilient Operation Across Commercial Mains Grids
With standard HDMI, VGA inputs, the display links easily to digital signage players and industrial computing equipment. An integrated Audio Socket (3.5mm) provides audio output capability. The internal power converter accepts universal 100-240V commercial electrical mains mains with power consumption limited to ≤ 30w, rated for operating conditions of below10℃ ~ +50℃ and ≤ 85%RH.
The audio output circuitry supports synchronized stereo playback, enabling interactive kiosks to provide clear voice prompts and confirmation chimes during customer self-service transactions.
The low-voltage direct current output stage delivers ultra-clean power to the liquid crystal timing controller, eliminating horizontal line noise and visual ripple in sensitive commercial AV setups.
Hardware-Agnostic Display Architecture via High-Definition Video

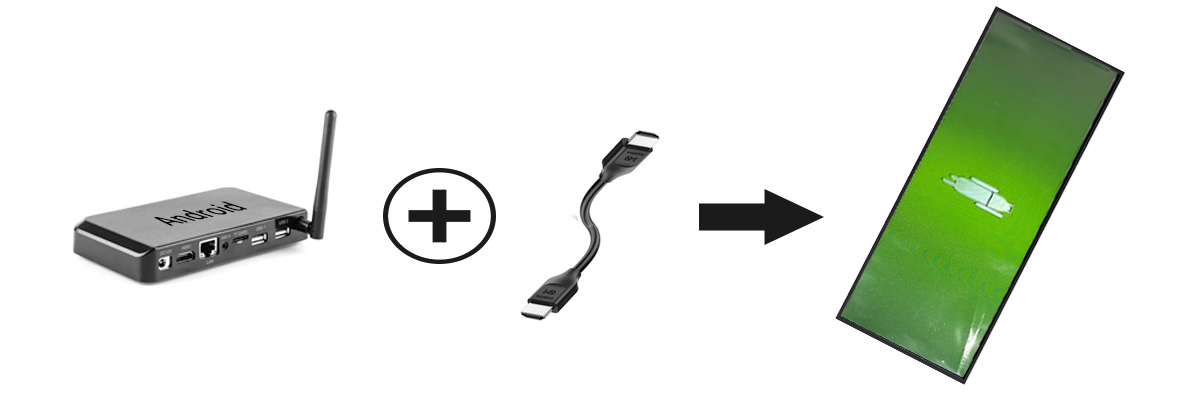

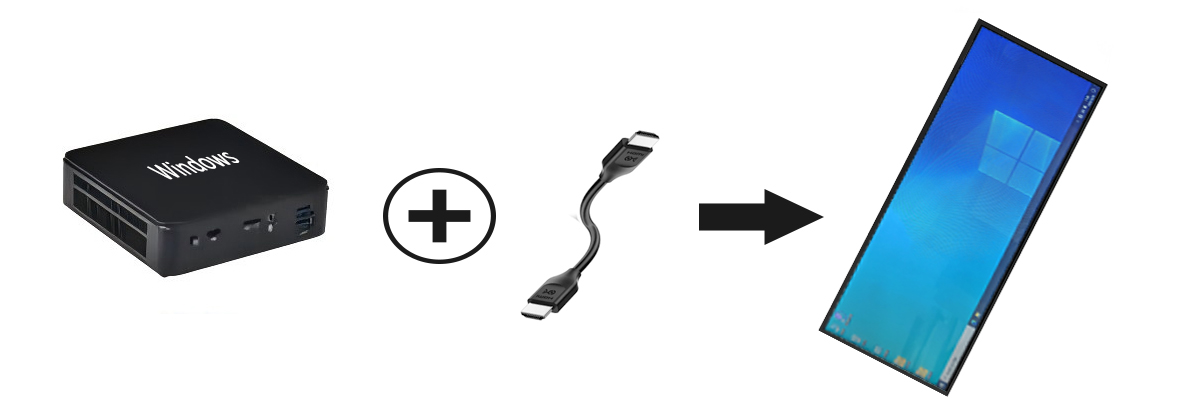

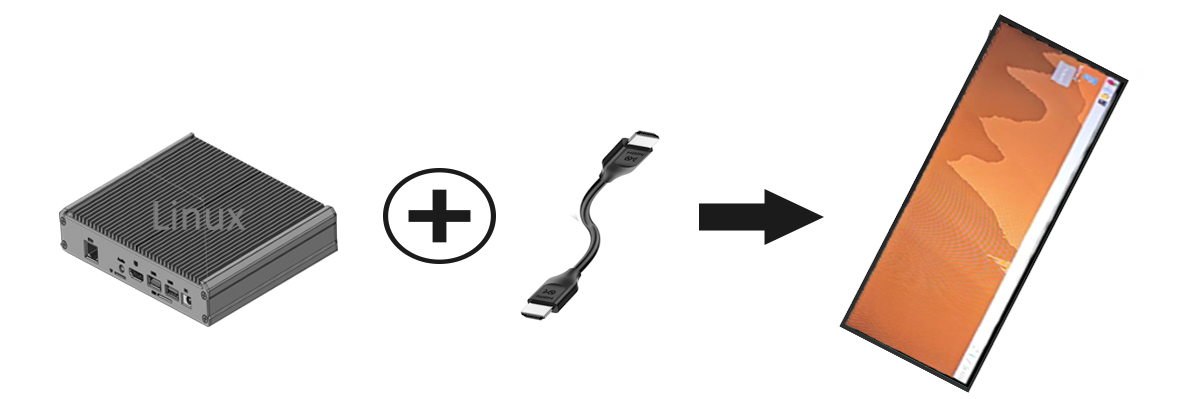

Designed with an uncompromised open-platform philosophy, this commercial screen avoids embedded operating system obsolescence. Through universal HDMI signal linking, installers can interface any external computing unit—whether powered by Windows, Android OS, or embedded Linux kernels. This freedom empowers network administrators to run custom touch kiosk interfaces, web-based digital menu boards, or PLC automation software with zero compatibility friction.
Sector Deployment Profiles: High-Footfall Commercial and Public Venues
The unique compact proportions of the 16.4-inch stretched bar monitor make it exceptionally versatile across tight commercial footprints: 1. Smart Retail Shelf Strips: Mounted on cosmetic counters, liquor shelving, and pharmacy displays to showcase real-time digital pricing, product benefits, and QR promotions. 2. Workstation & PC Secondary Telemetry: Positioned beneath primary monitors on gaming and creator desks for real-time CPU/GPU telemetry, chat streams, and audio timelines. 3. 1U/2U Server Rack & Industrial Consoles: Integrated into standard equipment racks and CNC machine panels to provide continuous system status and telemetry feeds. 4. Service Counter & Queue Indicators: Installed at bank teller counters and hospital intake stations to present queue ticket numbers and service status updates.
In smart grocery retail chains, this display format streamlines shelf-edge marketing by replacing static paper shelf tags with dynamic video loops. Supermarket category managers can schedule price changes, promote brand stories, and push limited-time discounts right at the point of decision, driving noticeable increases in retail basket size and impulse item turnover.
Field performance data demonstrates that integrating dynamic panoramic video loops into supermarket shelf headers drives measurable sales lift across featured product categories. Shoppers browsing grocery aisles spend more time engaging with product selections when dynamic pricing and brand storytelling are presented at eye level.
Global Logistics Optimization: SKD/CKD Deliveries and Import Tariff Savings
By establishing a direct factory relationship with ZXT, your company secures factory-direct commercial terms backed by genuine industrial engineering capability. With over nine years of dedicated experience and hundreds of deployed projects worldwide, we keep standard extrusion dies and tooling components permanently in stock. This eliminates upfront tooling charges on standard sizes while enabling rapid sample shipping within 72 hours of project sign-off. We cater to international contractors and volume resellers by offering flexible packaging formats. Order fully assembled turnkey commercial monitors, frameless open-cell modules, or CKD/SKD modular kits designed to optimize sea and air container utilization and lower local import tariffs. Our dedicated engineering team assists with every phase of mechanical and electronic integration, providing full CAD support and factory testing.
Flexible packaging options—from individual retail-ready cartons to high-density bulk export pallets—are engineered to maximize container space utilization and protect hardware during long ocean transit.
Enterprise Signage & Procurement FAQ
**Q1: Does this display require proprietary cloud subscriptions?**
No. The monitor functions as an open commercial display without mandatory software licensing or ongoing platform fees, leaving you completely free to select any commercial or open-source digital signage CMS.
**Q2: What viewing angles does the display support?**
Equipped with true IPS wide-angle optical alignment, the screen delivers symmetrical 178-degree (89°/89°/89°/89°) viewing cones without color shifting, contrast degradation, or visual washout.
**Q3: Can this display be installed in both horizontal and vertical orientations?**
Yes. The commercial-grade liquid crystal panel and fanless thermal design support both landscape horizontal banners and portrait vertical totem installations with equal reliability.
Technical Consultation and Custom Bracket Inquiries
Inquire today for factory-direct pricing, 3D STEP CAD models, or evaluation sample units of the 16.4-inch commercial stretched bar display. Our engineering staff is ready to assist with custom hardware scoping within two hours.
