Non-touchscreen

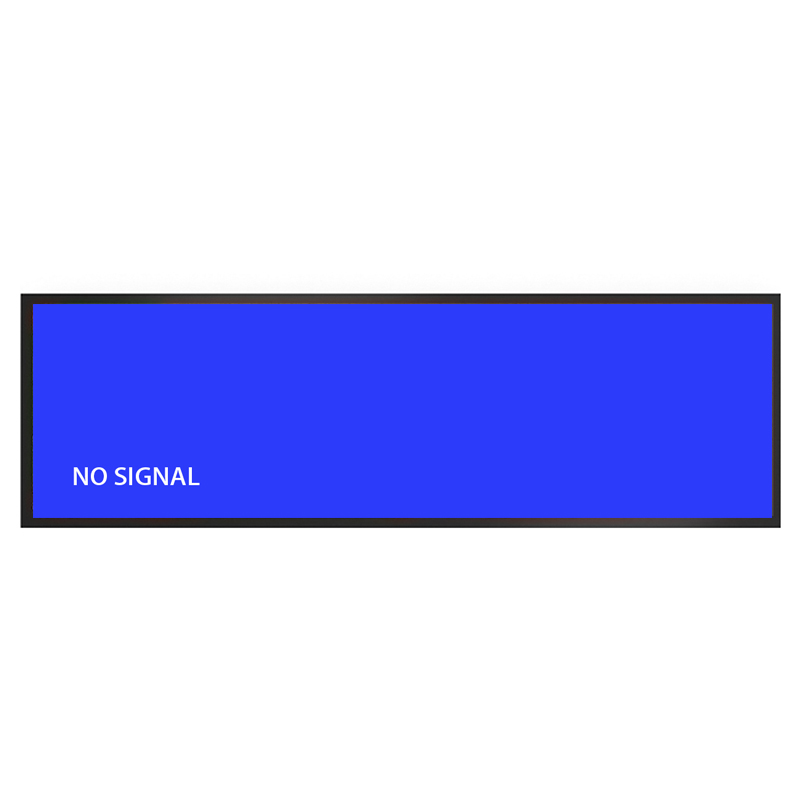

Compact 14.4 Inch Stretched LCD Display with Rugged Sheet Metal
Commercial 14.4 inch industrial sheet metal bar monitor with 1280*526 native resolution and 300 cd/㎡ brightness. Built for continuous operation across transport networks, retail aisles, and industrial facilities. Rapid global fulfillment from Shenzhen.
Specifications
- Screen Size
- 14.4 Inch
- Resolution
- 1280*526
- Brightness
- 300 cd/㎡
- Interface
- HDMI / VGA
14.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 14.4 inch | |
Resolution | 1280*526 | |
Brightness | 300 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 1500:1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 25w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Architectural Geometry: Resolving Horizontal Constraints in Commercial Architecture
In modern commercial retail and transportation hubs, standard 16:9 displays consistently create severe installation conflicts. Their excessive vertical height obstructs customer sightlines, intrudes into pedestrian aisles, and requires costly alterations to architectural shelving and vehicle bulkheads. The 14.4-inch stretched bar LCD monitor resolves these spatial bottlenecks by delivering native 1280*526 resolution across an elongated panoramic diagonal. Occupying virtually zero vertical height, it converts dormant horizontal margins into dynamic visual corridors for continuous advertising, live pricing, and passenger information without disrupting surrounding fixtures.
By replacing static cardboard signs and bulky poster frames with dynamic panoramic video loops, retail and transportation operators unlock real-time promotional agility. Content management platforms can instantly update merchandise promotions or emergency transit notices across hundreds of distributed displays, reducing maintenance overhead and maximizing visual engagement.
From an engineering standpoint, preserving structural sightlines directly correlates with higher customer retention in commercial spaces. Rather than obstructing surrounding merchandising displays or passenger pathways, the low-profile chassis sits flush against linear surfaces, creating an uncluttered, modern visual environment.
High-Definition Visual Delivery: Color Purity, Contrast, and Viewing Geometry
The 14.4-inch display is powered by an industrial-grade LCD panel designed for high-resolution panoramic visualization. With a native resolution of 1280*526, it presents sharp, detailed imagery that ensures promotional campaigns, digital price updates, and public transport schedules are legible and visually compelling at all times. Luminance is calibrated at 300 cd/㎡, delivering clear, crisp visuals in well-lit commercial spaces without generating uncomfortable glare for nearby customers. Backed by a 1500:1 contrast ratio, the display produces rich color tones, clean white highlights, and deep shadows. True IPS wide-angle technology provides an expansive symmetrical 89°/89°/89°/89° IPS full viewing angles viewing angle, while the solid-state LED backlight system is rated for an industrial-grade operational life of 60,000+ operational hours.
High panel transmission efficiency allows the display to achieve striking luminous output while maintaining low internal thermal dissipation, safeguarding delicate electronic components from excessive heat aging.
A resilient anti-glare surface treatment diffuses incoming light rays at microscopic angles, preventing harsh specular reflections from blinding nearby shoppers or transit operators under overhead LED lighting.
Enclosure Versatility: Fast Snap-in Mounting and Articulated Bracket Anchoring
The 14.4-inch sheet metal framework is precision-manufactured from high-strength galvanized steel plates. The ruggedized body shields internal electronic components against mechanical shocks, high-frequency vibration, and harsh environmental contaminants.
The monitor's fanless thermal design utilizes high-conductivity internal heat spreaders to transfer thermal energy directly to the exterior metal enclosure. This eliminates moving parts and dust accumulation, ensuring reliable 24/7 operation. Mounting flexibility is provided by standard VESA patterns and lateral mounting channels.
The mechanical chassis features a specialized snap-in bracket profile that clips securely into commercial supermarket gondola price channels. Front-accessible release tabs allow store personnel to service or reposition displays without dismantling shelf merchandise.
Controller Architecture: Seamless Audio-Video Synchronization and Native Scaling
The monitor features HDMI, VGA video inputs compatible with standard commercial and industrial video sources. Audio playback is supported through a Audio Socket (3.5mm). Operating on AC 100V~240V (50/60Hz) power with an efficient consumption of ≤ 25w, the unit functions dependably across temperatures from below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
High-efficiency switch-mode power supplies minimize wasted heat generation, allowing the display to operate comfortably within tight architectural cavities with restricted ventilation.
Dual video input provisions allow technicians to connect a primary media player alongside a secondary backup feed, providing redundant visual broadcasting capability for mission-critical transit wayfinding.
Frictionless Cross-Platform Operation (Windows, Android, Linux)
Avoid the hidden costs and vendor lock-in associated with closed smart screen ecosystems. Featuring standard high-definition HDMI video interfacing, the display supports immediate cross-platform compatibility across Windows workstations, Android compute sticks, and industrial Linux appliances. Operators can switch host operating systems in seconds to match evolving CMS software, passenger information engines, or automated factory monitoring frameworks.
Application Blueprints: Deploying Stretched Bar Displays for Maximum Return
The 14.4-inch stretched bar monitor is optimized for linear architectural installations. It provides dynamic shelf-edge pricing in retail stores, route progress alerts in public transit vehicles, equipment status feeds in control centers, and directory listings in commercial office buildings.
High-speed commuter rail platform gates utilize this display as an overhead platform indicator. Passengers waiting along boarding zones can check real-time train arrival times, car carriage layouts, and safety instructions at a single glance.
Financial trading desks and professional creative workstations benefit from the display's ultrawide auxiliary utility. Traders and video editors keep critical communications and timeline trackers visible without sacrificing main desktop workspace.
Manufacturing Agility: 3-Day Sample Turnaround and Custom Enclosure Tooling
Working with ZXT ensures direct access to manufacturing authority and extensive production capacity. With nearly a decade of display manufacturing experience and more than 300 international commercial deployments, we maintain comprehensive inventories of standard extrusion casings and chassis stampings. This established infrastructure allows our clients to initiate volume rollouts without tooling delays or custom mold expenses, supported by fast 3-day sample dispatch. We offer flexible supply models tailored to your supply chain requirements. Whether you require complete retail-ready monitors in custom packaging, open-frame chassis for integration into self-service kiosks, or CKD/SKD component kits for domestic final assembly, ZXT delivers fully tested, quality-certified hardware. Our engineering team provides comprehensive technical documentation, including 2D dimensional drawings, 3D STEP models, connector wiring schematics, and firmware customization.
We offer complete technical documentation, including 3D STEP mechanical models, connector pinout diagrams, and power dissipation tables, enabling mechanical and electrical engineers to integrate our hardware seamlessly.
Hardware Deployment & Specification FAQ
**Q1: Can multiple displays be mounted side-by-side to form a continuous visual ribbon?**
Yes. The ultra-narrow bezel design and lateral slide-channel grooves allow multiple units to be installed horizontally in tight alignment, creating seamless digital merchandising ribbons along store shelf rows.
**Q2: Is audio output supported on this monitor?**
Yes. The motherboard includes an integrated 3.5mm stereo audio output jack, enabling direct connection to shelf-edge sound bars, directional speakers, or external public address amplification equipment.
**Q3: What is ZXT's minimum order quantity (MOQ) for standard models?**
Because we maintain permanent in-stock tooling and extrusion profiles, standard models have flexible, low MOQ requirements, allowing enterprise clients to begin with small evaluation batches before volume rollouts.
Commercial Quotation and Production Scheduling
Contact our technical sales team to request mechanical drawings, discuss volume pricing, or arrange a 3-day sample dispatch for the 14.4-inch panoramic stretched monitor. We deliver prompt factory-direct quotations and technical support.
