Non-touchscreen
13.9 Inch Commercial Shelf Bar LCD Monitor for Product Pricing & Ads
Wholesale commercial 13.9 inch industrial sheet metal bar monitor (1280*400, 400 cd/㎡). Engineered for high-traffic public infrastructure and space-constrained architectural fixtures. Direct engineering collaboration and transparent factory pricing.
Specifications
- Screen Size
- 13.9 Inch
- Resolution
- 1280*400
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
13.9 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 13.9 inch | |
Resolution | 1280*400 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 800:1 | |
Viewing Angle(H/v) | 85°/85°/85°/85° (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 25w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Panoramic Engineering: Delivering Wide Visual Feeds in Restricted Vertical Slots

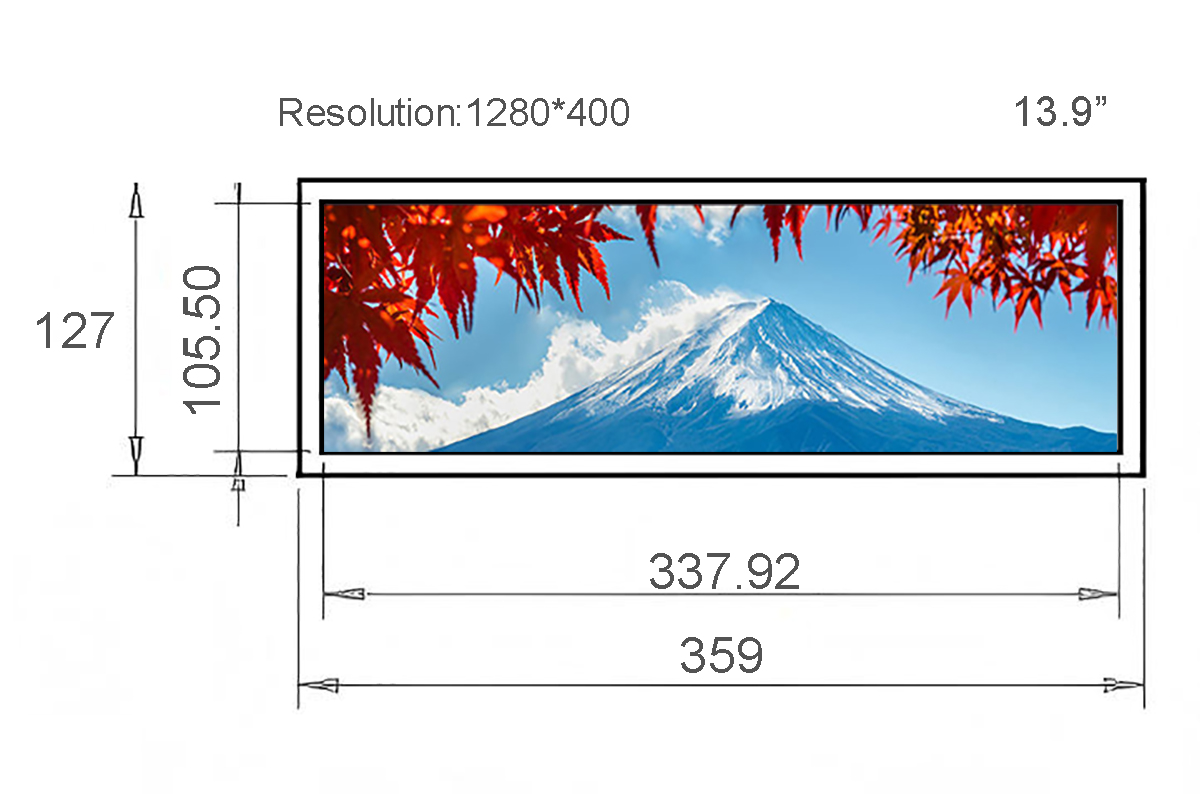

Engineered for installations where standard 16:9 monitors are too tall, the 13.9-inch stretched display delivers 1280*400 resolution across an active 13.9-inch diagonal. It allows commercial operators to deploy vibrant promotional content and operational alerts along narrow horizontal headers with zero space waste.
By turning dormant perimeter spaces into dynamic visual assets, venues maximize the commercial value of their existing architecture. Every square inch of wall or shelf space contributes actively to customer engagement.
Enterprise clients benefit from a consistent hardware aesthetic across diverse venue locations. The standardized linear enclosure provides a cohesive visual signature whether installed in boutique shops or transit hubs.
Liquid Crystal Clarity: True IPS Alignment and Wide-Angle Color Fidelity
Engineered for high-impact visual performance, the 13.9-inch panoramic display utilizes a commercial-grade LCD cell with a native 1280*400 resolution. The high pixel density provides exceptional visual precision, allowing fine pricing fonts, international transit icons, and high-definition video loops to display with pristine clarity without downscaling or blur. A calibrated brightness level of 400 cd/㎡ ensures that content remains vivid and easily readable in spaces with high ambient lighting. Supported by a 800:1 contrast ratio, the panel renders rich color gradations, crisp dark boundaries, and punchy visual contrast that captures shopper attention instantly. The display incorporates true IPS wide-angle technology, providing an expansive ultra-wide 89/89/89/89 horizontal and vertical sightlines field of view, while the LED backlight module is rated for an operational lifespan of over over 60,000 hours of continuous 24/7 commercial duty.
Constant-current backlight driver circuitry guarantees flicker-free optical output across the entire dimming range, eliminating optical fatigue for cashiers, station personnel, and nearby shoppers who view the screen continuously.
Uniform edge-lit LED backlighting eliminates dim corners and visual vignetting, ensuring that panoramic video banners maintain consistent brightness and chromatic balance across the entire screen span.
Structural Engineering: Low-Profile Framing and Standard VESA Compatibility
Engineered for high-reliability industrial use, the 13.9-inch sheet metal casing is fabricated from electro-galvanized steel with anti-scratch powder coating. The heavy-duty housing provides exceptional physical toughness, high vibration resistance, and comprehensive electronic shielding across noisy industrial environments.
The unit features a fanless, solid-state cooling design that conducts thermal energy away from sensitive electronics directly to the outer casing. This passive cooling system ensures whisper-quiet operation and eliminates fan-related maintenance issues. Rear VESA mounting points and lateral slide channels provide straightforward installation across various mounting structures.
The chassis profile incorporates recessed rear connector pockets that protect HDMI and power plugs from accidental snags during maintenance. Right-angle cable routing channels allow the monitor to sit flush against flat architectural walls with zero gap.
Electronics Hardening: Conformal Coating Protection Against Humidity and Dust
Built with standard HDMI, VGA ports, the monitor interfaces smoothly with commercial media players, PCs, and video controllers. Audio integration is enabled via a Audio Socket (3.5mm). The internal power supply operates from AC 100V~240V (50/60Hz), drawing ≤ 25w during active operation. The hardware is certified for continuous operation across below10℃ ~ +50℃ and humidity levels of ≤ 85%RH.
Energy-efficient backlight drivers regulate power flow dynamically based on content brightness, trimming power consumption while maintaining peak visual punch for advertising assets.

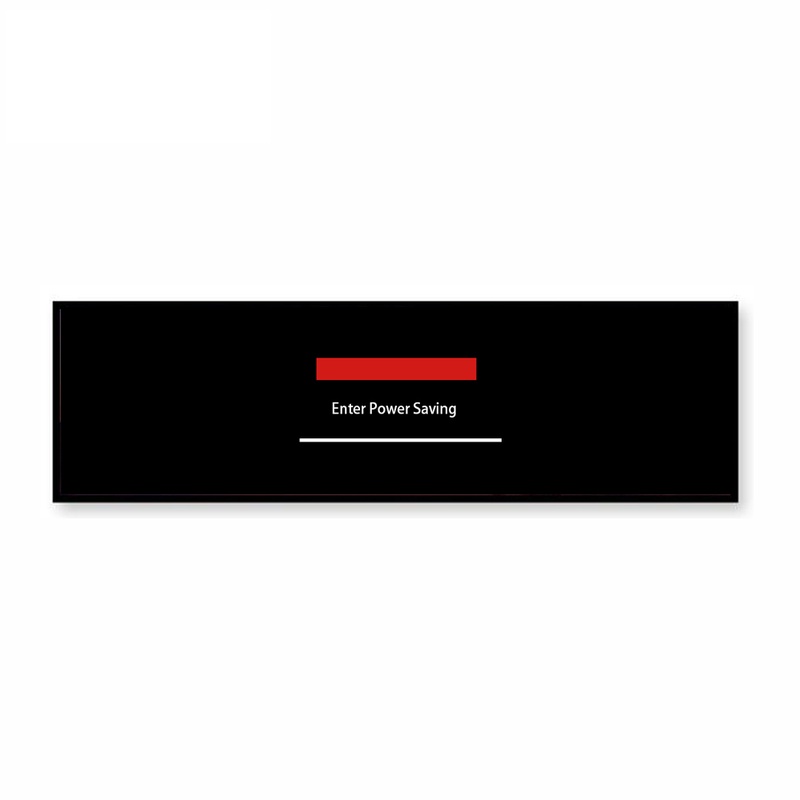

Energy-conserving standby modes reduce power consumption to less than one watt during off-hours, allowing automated facility management systems to power down screens overnight effortlessly.
Unrestricted Cross-OS Compatibility for Enterprise Signage
Designed to serve as a versatile visual terminal, the display features native HDMI compatibility with all major operating systems, including Microsoft Windows, Google Android, and enterprise Linux distributions. IT departments can pair the screen with their preferred hardware platform to broadcast cloud-managed digital signage, execute custom interactive scripts, or display mission-critical telemetry without proprietary software licensing hurdles.
Deployment Analysis: Where Panoramic Display Form Factors Deliver Peak Value
Deploying the 13.9-inch panoramic display enables venues to present dynamic video messaging in previously inaccessible spaces. Key applications include retail grocery shelf signage, commuter train door route maps, corporate elevator transom directories, and manufacturing facility production status banners.
Corporate office towers mount this screen across elevator door lintels and common hallway corridors. Building managers broadcast tenant announcements, weather alerts, and corporate communications in an unobtrusive, contemporary format.
Museum curators praise the display's ability to deliver rich historical context alongside delicate artifacts. The low-profile screen fits neatly into exhibit vitrines and pedestals without distracting visitors from the physical collection.
Direct Factory Sourcing: Reducing Procurement Costs and Engineering Lead Times
ZXT provides source-factory manufacturing for commercial stretched displays, eliminating third-party markups. Our in-stock tooling ensures zero mold charges on standard sizes, supported by fast 3-day sample dispatch and modular SKD shipping options for international clients.
Factory-direct warranty coverage is backed by responsive technical assistance and available spare parts kits, ensuring that deployed displays maintain continuous commercial service year after year.
Buyer & Integrator FAQ
**Q1: Does the display support multi-zone content splitting?**
Yes. The native panoramic resolution provides ample horizontal canvas for digital signage software to partition the display into multiple discrete zones, such as simultaneous video playback, static prices, and tickers.
**Q2: How quickly can replacement parts or expansion units be provided?**
Because ZXT maintains active tooling and standardized component inventories, spare parts, replacement driver boards, and expansion units can be prepared and dispatched with industry-leading lead times.
**Q3: Can we obtain customized packaging for retail distribution?**
Yes. We offer custom-branded master export cartons, individualized retail packaging, and reinforced high-density palletization engineered to survive long-distance international ocean and air freight.
Project Consultation and Custom Quotation Inquiries
To evaluate a test sample of the 13.9-inch ultra-wide stretched bar LCD monitor, request detailed 2D/3D CAD mounting blueprints, or discuss high-volume OEM/ODM pricing tiers for upcoming commercial deployments, please contact our international technical sales department. Provide your target installation environment, anticipated order volume, and specific interface requirements, and our engineering team will provide a tailored hardware proposal and commercial quotation within two business hours.
