Non-touchscreen

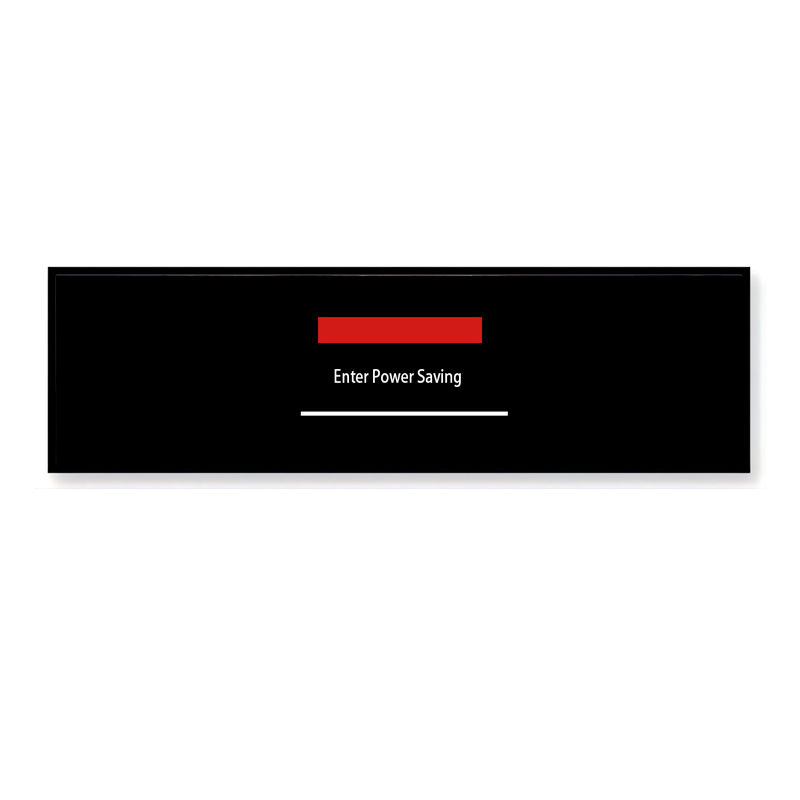

Cut Bar Monitor (10.4 Inch) with High Resolution & HDMI/VGA Input
Commercial 10.4 inch industrial sheet metal bar monitor featuring 1280*205 ultra-wide display matrix and 400 cd/㎡ brightness. Built with in-stock tooling and ruggedized metallic housing for continuous public operation. Rapid 3-day sample dispatch worldwide.
Specifications
- Screen Size
- 10.4 Inch
- Resolution
- 1280*205
- Brightness
- 400 cd/㎡
- Interface
- HDMI / VGA
10.4 Inch Stretched LCD | ||
Display Specifications | ||
Screen Size | 10.4 inch | |
Resolution | 1280*205 | |
Brightness | 400 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 29 days, 4:01:00 | |
Viewing Angle(H/v) | 80°/80°/70°/70° (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
AV Inputs | ||
Video | HDMI, VGA | |
Audio | Audio Socket (3.5mm) | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 15w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 90%RH | |
Space-Constrained Visual Architecture: Engineering Displays for Narrow Margins
In modern commercial architecture, horizontal margins represent prime visual real estate that traditional monitors cannot utilize. The 10.4-inch stretched bar LCD monitor unlocks these spaces, delivering native 1280*205 resolution across an elongated 10.4-inch active diagonal to provide continuous digital messaging without consuming vertical room.
Enterprise IT managers appreciate the straightforward integration into centralized digital signage networks. The display links seamlessly with existing media players, supporting automated scheduling and remote device monitoring.
Modern supermarket merchandising strategies rely on dynamic motion graphics to stimulate shopper curiosity. Eye-level digital shelf headers deliver brand storytelling right where purchasing decisions are finalized.
Display Performance: Calibrated Luminance and Anti-Reflective Surface Engineering
The optical engine of the 10.4-inch stretched display is built to rigorous industrial standards, delivering a native resolution of 1280*205 across its active matrix. This ultra-wide format allows complex multi-zone layouts—such as simultaneous video playback, static brand logos, and scrolling price or route tickers—to run side-by-side without graphical scaling artifacts. With a calibrated luminance of 400 cd/㎡, the display provides excellent readability in bright indoor commercial environments. The liquid crystal panel is paired with an anti-reflective polarising film that minimizes ambient light reflections, while the native contrast ratio of 1000:1 ensures deep blacks and sharp text separation. Equipped with advanced IPS alignment technology, the display maintains full optical fidelity across true IPS 178-degree wide visual cone viewing angles, while the LED backlight system boasts a service lifetime rating of an industrial service life exceeding 60,000 hours.
The liquid crystal cell incorporates precision color filter arrays that deliver authentic color reproduction, ensuring corporate logos, luxury apparel photography, and fresh produce imagery appear appetizing and true-to-life.
The optical polarising stack is specifically formulated to mitigate rainbow artifacts under polarized sunglasses, ensuring that vehicle passengers and outdoor shoppers read dynamic text without visual interference.
Industrial Housing Design: Resisting Ambient Dust, Moisture, and Vibration
The 10.4-inch monitor features a ruggedized cold-rolled steel body designed for mission-critical deployments. Its electro-galvanized metal framework resists physical impact, protects sensitive liquid crystal layers from torsional strain, and ensures long-term structural alignment in mobile and stationary industrial installations.
Thermal efficiency is maintained through an advanced fanless heat dissipation layout that uses the external metal body as a heat sink. This eliminates fan noise and prevents dust and grease accumulation within the housing, supporting long-term commercial reliability. The chassis provides standard VESA mounting provisions and side-channel grooves for secure installation.
For overhead corridor and transit concourse deployments, the housing features reinforced steel eyelet anchor points rated for heavy-duty aircraft suspension wires. Safety cables lock directly into internal structural gussets, ensuring complete public safety in seismic or high-vibration zones.
Power Management: Minimizing Wattage Draw Across Multi-Screen Deployments
The display incorporates HDMI, VGA video inputs for immediate compatibility with external digital signage players and embedded PCs. Video signals are scaled accurately without distortion. Audio output is provided via a Audio Socket (3.5mm), while the universal power supply supports global 100~240V line voltage at 50/60Hz with an energy-efficient draw of ≤ 15w. Environmental ratings cover temperatures from below10℃ ~ +50℃ and relative humidity up to ≤ 90%RH.
The video processing engine features adaptive edge-smoothing algorithms that scale standard video resolutions cleanly across the ultra-wide aspect ratio without introducing pixel distortion or visual artifacts.
Automatic video signal recovery firmware monitors input signal integrity continuously, instantly re-establishing video synchronization following external player reboots or signal switching events.
Multi-OS Ecosystem Support via Standard Video Interface
Eliminating the constraints of built-in proprietary player boards, this open-standard commercial monitor provides straightforward connectivity to external Windows, Android, and Linux controllers via HDMI. This decoupled design enables AV contractors to deploy specialized content management software, digital pricing applications, or real-time SCADA telemetry systems while maintaining the flexibility to swap media players at any future date.
Sector Implementation: Passenger Route Displays and Shelf-Edge Video Banners
The 10.4-inch stretched monitor delivers high visual authority in narrow mounting footprints. It is widely utilized for supermarket shelf-edge branding, rail transit passenger information systems, server room equipment monitoring, and QSR restaurant menu displays, providing reliable performance across demanding commercial settings.
Interactive self-service kiosks and automated parcel lockers embed this horizontal display in top fascias. Intuitive visual prompts and animated status bars guide users through transaction steps, speeding up user checkout and package pickup cycles.
Commercial office towers utilizing panoramic displays above elevator transoms report positive tenant feedback. Dynamic building notices, public transit alerts, and local weather updates are broadcast in an unobtrusive, contemporary format.
Agile OEM/ODM Solutions: Custom Paint Finishes, Logo Printing, and Optical Bonding
With over nine years of specialized display manufacturing experience, ZXT supports international system integrators with factory-direct pricing and rapid fulfillment. We offer in-stock tooling, 3-day sample dispatch, and complete engineering documentation including 3D CAD models.
Our engineering staff possesses deep expertise in international compliance standards, assisting partners in meeting CE, FCC, RoHS, and specialized railway or retail electrical safety certifications.
Commercial Hardware Selection FAQ
**Q1: Is this display compatible with Android digital signage player sticks?**
Yes. Any Android media stick or compute box with an HDMI output connects directly, allowing operators to run standard Android digital signage APKs with full native resolution support.
**Q2: What enclosure materials are available?**
Depending on model and application, we supply precision architectural extruded aluminum profiles (ideal for retail shelves) and heavy-duty cold-rolled electro-galvanized sheet metal housings (for industrial racks and transit).
**Q3: Can we request customized power supply options such as DC 12V or 24V?**
Yes. In addition to universal 100-240V AC inputs, we can engineer custom DC 12V, 24V, or wide-range vehicle power conversion modules for automotive and railway rolling stock deployments.
B2B Commercial Consultation and Engineering Support
Contact ZXT today to request 3D CAD blueprints, technical datasheets, or evaluation samples for the 10.4-inch stretched bar LCD monitor. Our technical sales team returns official factory proposals within two hours.
