23.6 Inch Custom Circular TV PCAP Touch Round LCD Display Module Advertising Media Display

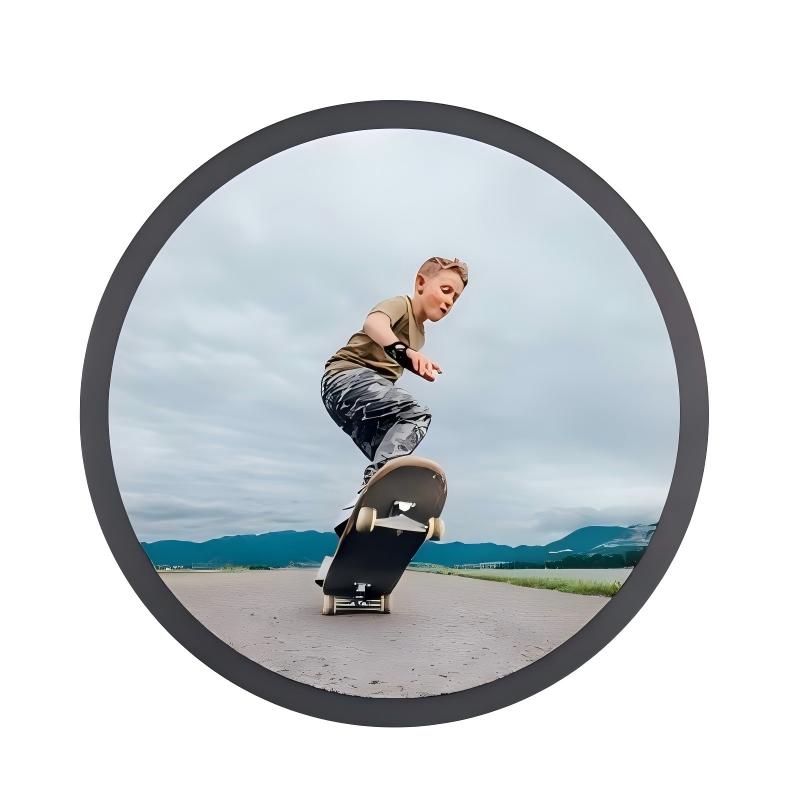

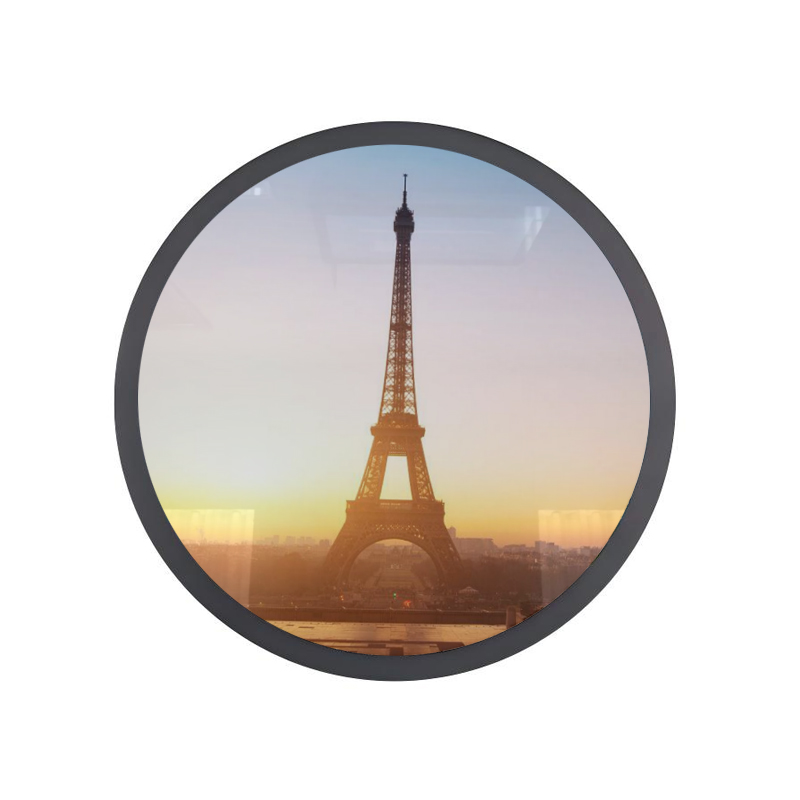

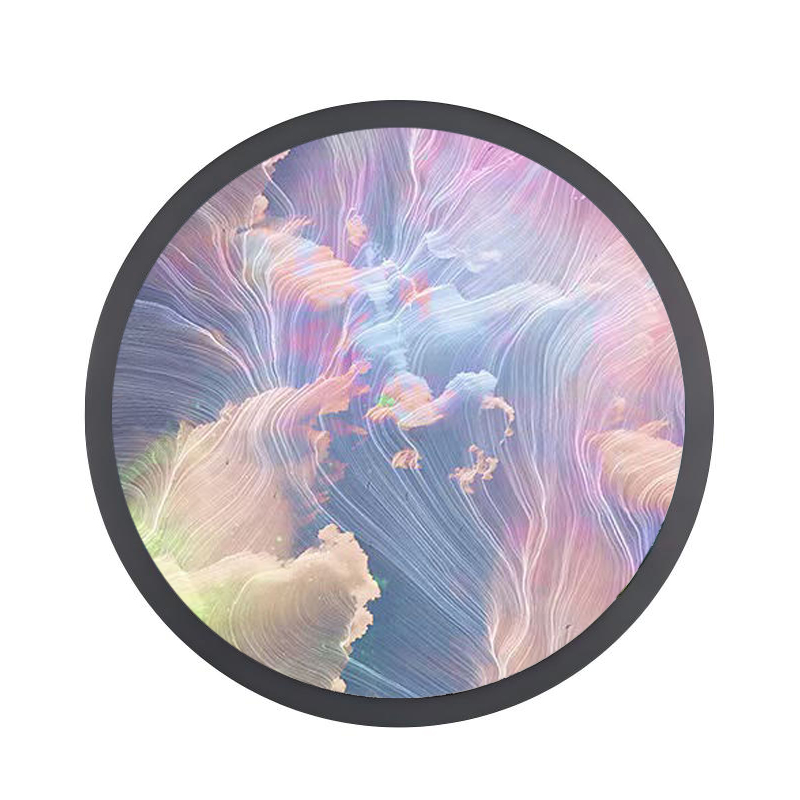

23.6 Inch Touch Round LCD Display Module
23.6 Inch Custom Circular TV PCAP Touch Round LCD Display Module Advertising Media Display
18.9 Inch Original 1:1 Square LCD Display Wall-Mounted Advertising Kiosk with Round LCD Display Integration Capability
The 18.9 Inch Original square LCD display 1:1 version HD wall-mounted advertising kiosk is a versatile commercial screen platform designed for next-generation digital signage systems. While built on a square 1:1 architecture, it also supports creative UI layouts that make it suitable for round lcd display style content visualization, interactive dashboards, and embedded system applications.
This model is widely used in retail, transportation, smart devices, and OEM integration projects across the USA, Europe, and Middle East markets due to its flexibility, stable performance, and factory customization capability.
Why Round LCD Display Concept Is Growing in Smart Device Ecosystems
The demand for round lcd display solutions is increasing due to the rise of wearable devices, automotive dashboards, smart controls, and IoT interfaces.
Key advantages:
- Compact and visually balanced display format
- Ideal for circular UI design and smart dashboards
- Supports embedded and industrial integration
- Compatible with Raspberry Pi and Android systems
- Low power and high stability design
Even though round displays are typically used in specialized devices, square-based platforms like this kiosk can simulate or integrate round UI interfaces effectively.
Round LCD Display Raspberry Pi Integration for Smart Projects
The round lcd display raspberry pi combination is widely used in DIY, industrial, and smart development projects.
Applications:
- Smart home control panels
- IoT dashboards
- Custom embedded interfaces
- Industrial monitoring systems
This kiosk supports external integration with Raspberry Pi systems, making it suitable for developers and OEM solution providers.
23.6 Inch Round LCD display | ||
Display Specifications | ||
Screen Size | 23.6 inch | |
Resolution | 1280*1280 | |
Brightness | 250 cd/㎡ | |
BLU | LCD | |
Contrast Ratio | 3000 :1 | |
Viewing Angle(H/v) | 89/89/89/89 (Typ.)(CR≥10) | |
Backlight Life | 60,000(hrs) | |
Panel Parameters | ||
OS | Android | |
CPU | T972,Quad-core ARM,Cortex-A55,1.9GHz | |
RAM | 2GB | |
ROM | 16GB | |
Network | WH-Fi/LAN/ BT4.2 | |
l/O Interface | USB2.0x 1/Micro USB x 1/TF Cardx 1/DC IN x 1/RESET x 1 | |
PCAP Touchscreen Panel Parameters | ||
Touch style | G+FF Projected Capacitive Touch screen | |
Touch points | Default 10 points | |
Cover Glass | Physical toughened Morse magnitude 7 explosion-proof | |
Optically bonded 3mm glass for low parallax | ||
The glass transmittance | >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% | |
Response speed | < 6ms | |
Accuracy of touch | More than 90% of the touch area ±2mm | |
Touch ways | Fingers, touch pen | |
Output format | The coordinate output | |
Clicks time | Unlimited | |
The smallest touch size | 5mm | |
Long resistance | Yes available | |
Touch Interfaces | USB | |
Storage temperature & Humidity | below20℃ ~ +60℃, ≤ 90%RH | |
Power Specifications | ||
Power Supply | AC 100V~240V, 50/60Hz | |
Power Consumption | ≤ 45w | |
Environment Specifications | ||
Operation Temperature | below10℃ ~ +50℃ | |
Operation Humidity | ≤ 85%RH | |
Round Color LCD for Advanced Visual Output
The round color lcd format supports full-color graphical output for modern smart devices.
Features:
- High-resolution color rendering
- Smooth UI animation support
- Multi-layer interface capability
- Energy-efficient display output
It is widely used in wearable devices, automotive dashboards, and smart instruments.
OEM & ODM Customization Services
We provide full OEM and ODM customization for smart display solutions.
Hardware customization:
- Screen size options (10”–32”)
- Round UI simulation or custom layout design
- Touch integration (capacitive / infrared)
- Interface support (HDMI / USB / LAN)
Software customization:
- Android / Linux / Windows support
- Raspberry Pi compatibility
- SDK integration services
- Custom UI development
Branding customization:
- Logo printing
- Frame design customization
- Packaging customization
- Private label solutions

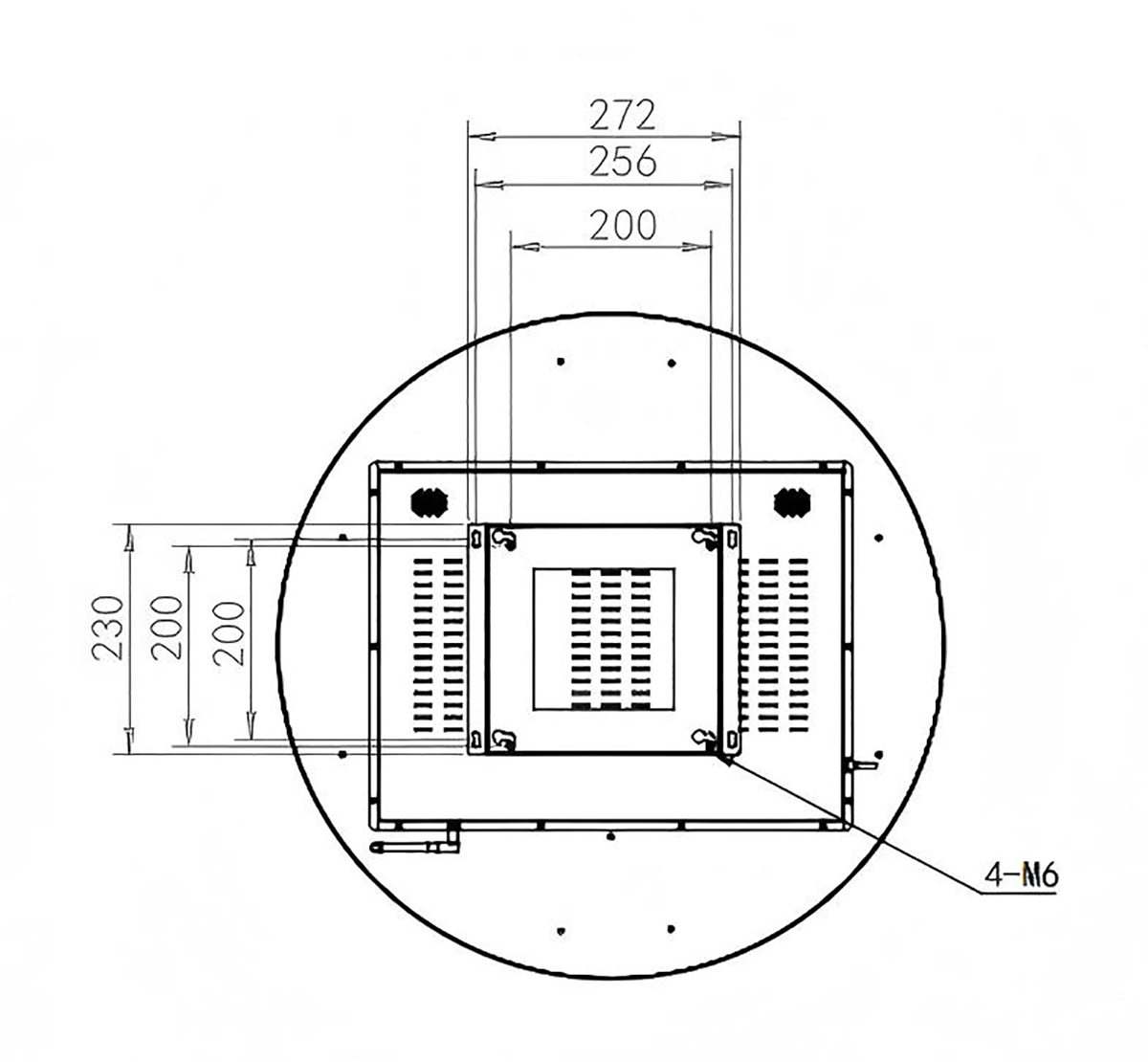

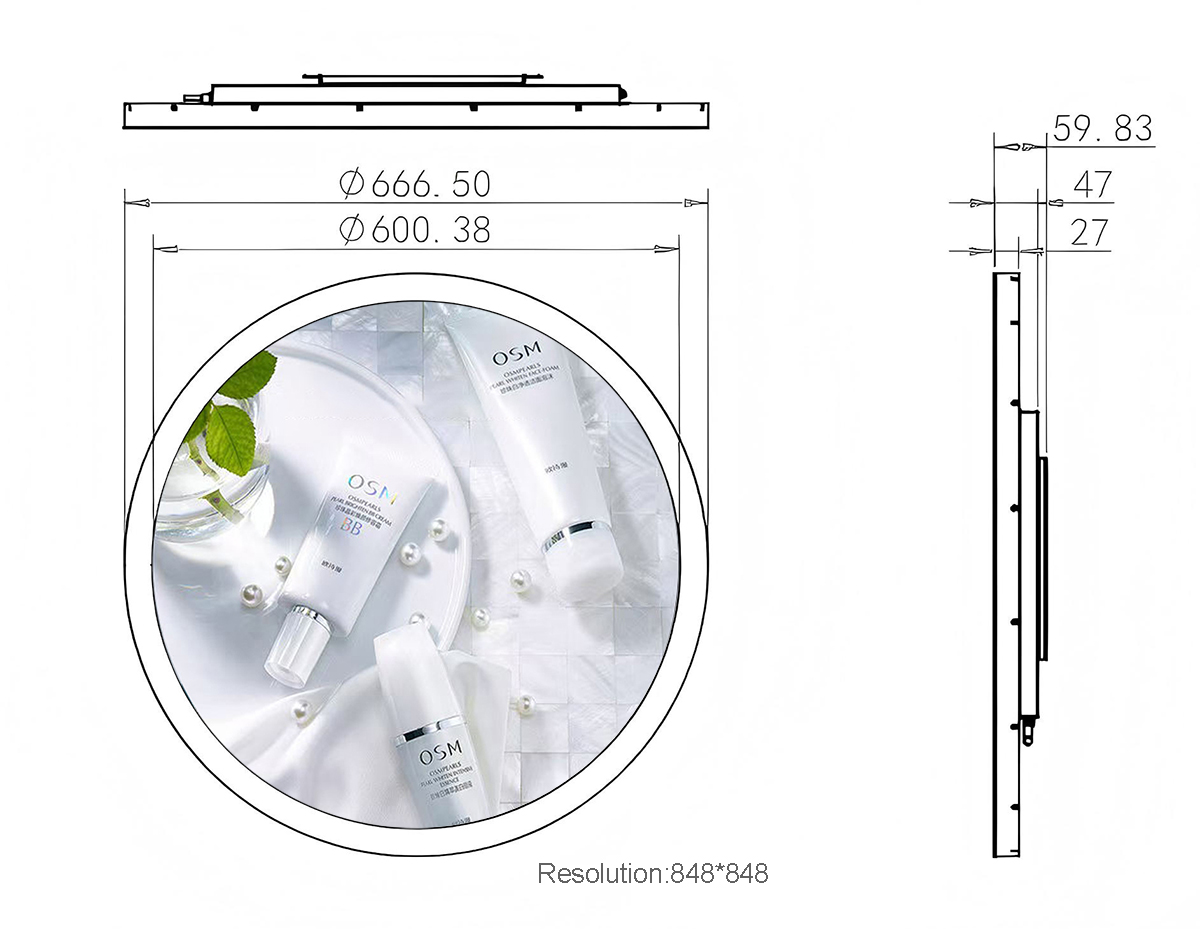

Product Dimension as follows:
Frequently Asked Questions (FAQ)
Q1: Can this display support round UI design?
Yes, it can simulate and display round lcd display style interfaces through software customization.
Q2: Does it support Raspberry Pi integration?
Yes, it supports round lcd display raspberry pi and embedded systems.
Q3: Is it suitable for automotive systems?
It can be used for simulation and industrial interface development similar to steelmate round lcd cig plug tpms concepts.
Q4: Can it be used as a smart clock display?
Yes, it supports round lcd clock style applications.
Q5: Do you offer OEM customization?
Yes, full OEM/ODM customization is available for hardware and software.
Start Your Smart Display Project Today
If you are looking for a flexible smart display platform that supports advanced UI development, Raspberry Pi integration, and OEM customization, we are ready to support your project.
We help global clients build innovative display solutions for retail, industrial, and smart device applications.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
